Verti-Mix - The self-propelled model: Powerful, robust, comfortable

The Verti-Mix SF and Sherpa are the result of Strautmann's experience in fodder mixing technology for over the last 20 years. The Strautmann Vario2 mixing auger technology substantially contributes to increasing the productivity of modern dairy farms.

Self-propelled fodder mixing wagons make the labour-intensive dairy cattle feeding procedure much easier thus saving time and labour. Homogeneously mixed ingredients prevent the cows from selecting the fodder. Higher milk yields are achieved with improved ingredients distributed evenly. All animals are optimally fed from the physiological point of view and less prone to diseases which leads to healthy, long-living cows and a high degree of effectiveness.

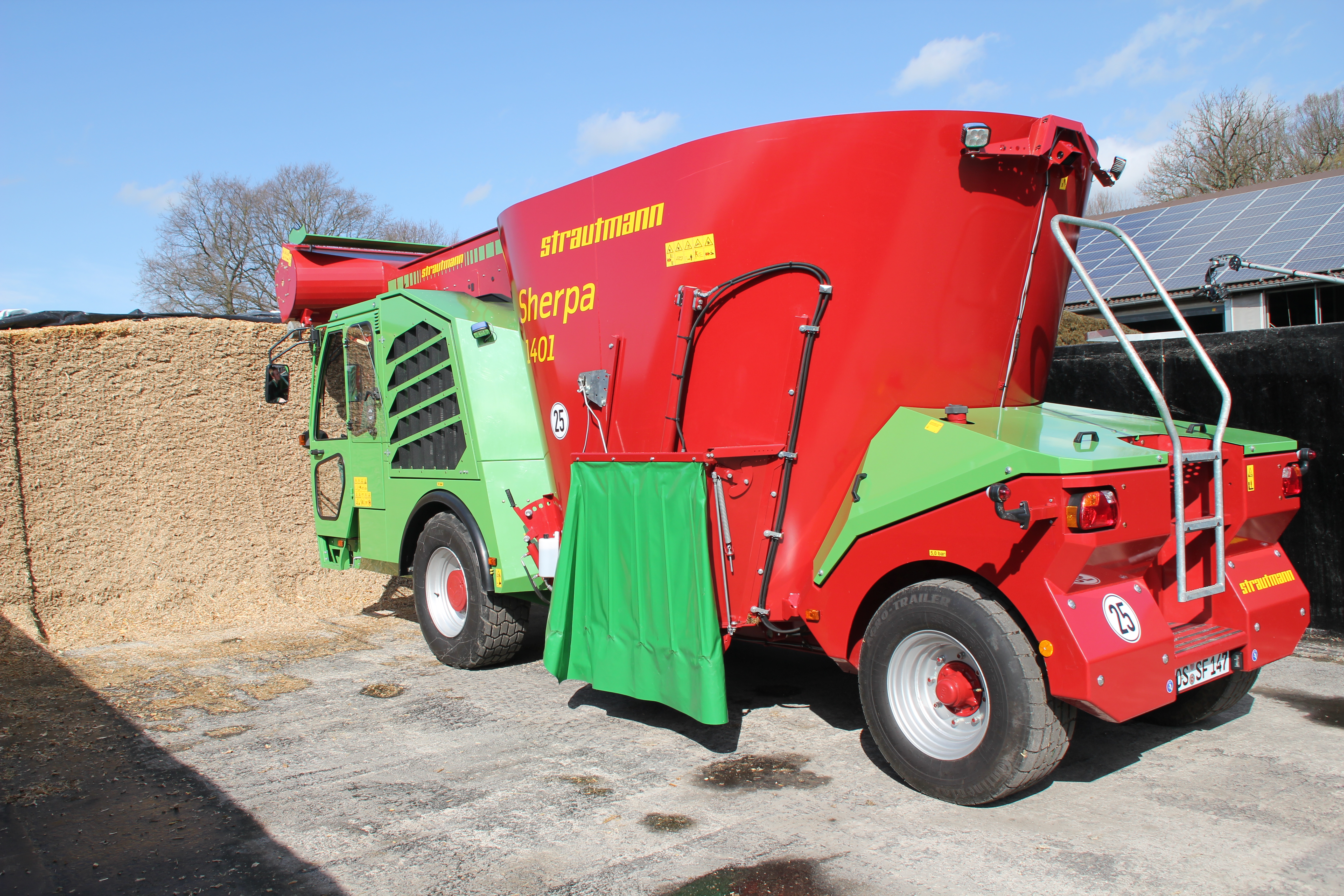

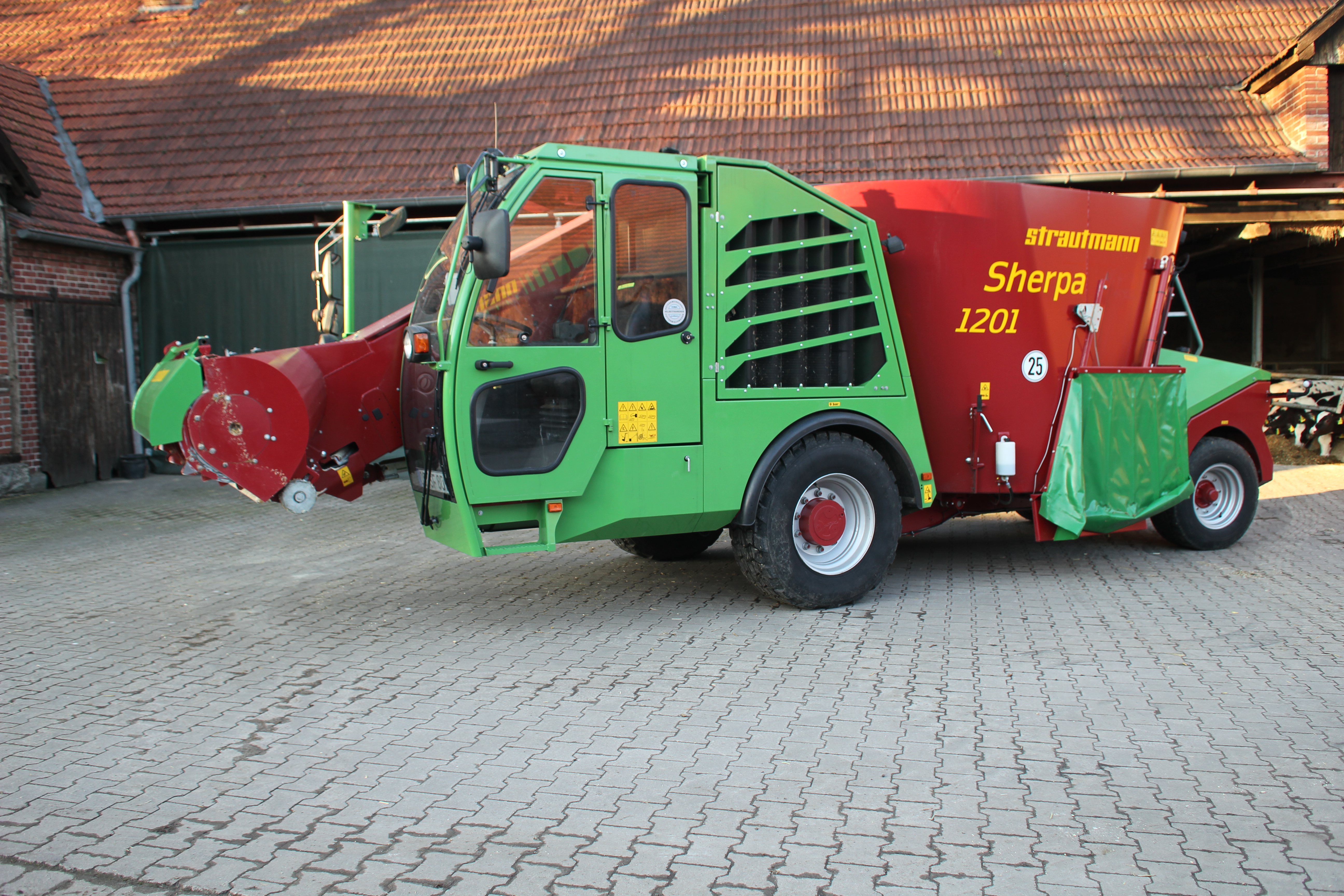

p2 photos of the Sherpa self propelled mixer wagon. Left photo is a view from the side, right photo is a view from the back

● Usable mixing capacity of 11 - 20 m³. ● Picking-up and feeding with one machine. ● Optimum protection of fodder and ideal cut surfaces. ● Accurate preparation of feed ration. ● Smooth cut surface shape. ● Maximum efficiency. ● 6-cylinder engine for maximum power and low consumption, 4-cylinder engine for the Verti-Mix Sherpa.

Why mix feed?

International scientific studies have revealed that the efficiency in milk production can be increased many times over by the use of feed mixing wagons. Due to the mixing of individual components to a TMR (partial or total mixed ration), the animals can no longer be selective and thus take up the same feed make-up with every bite, which ensures optimum physiological care of the entire herd, regardless of the position of the individual animal in ranking.

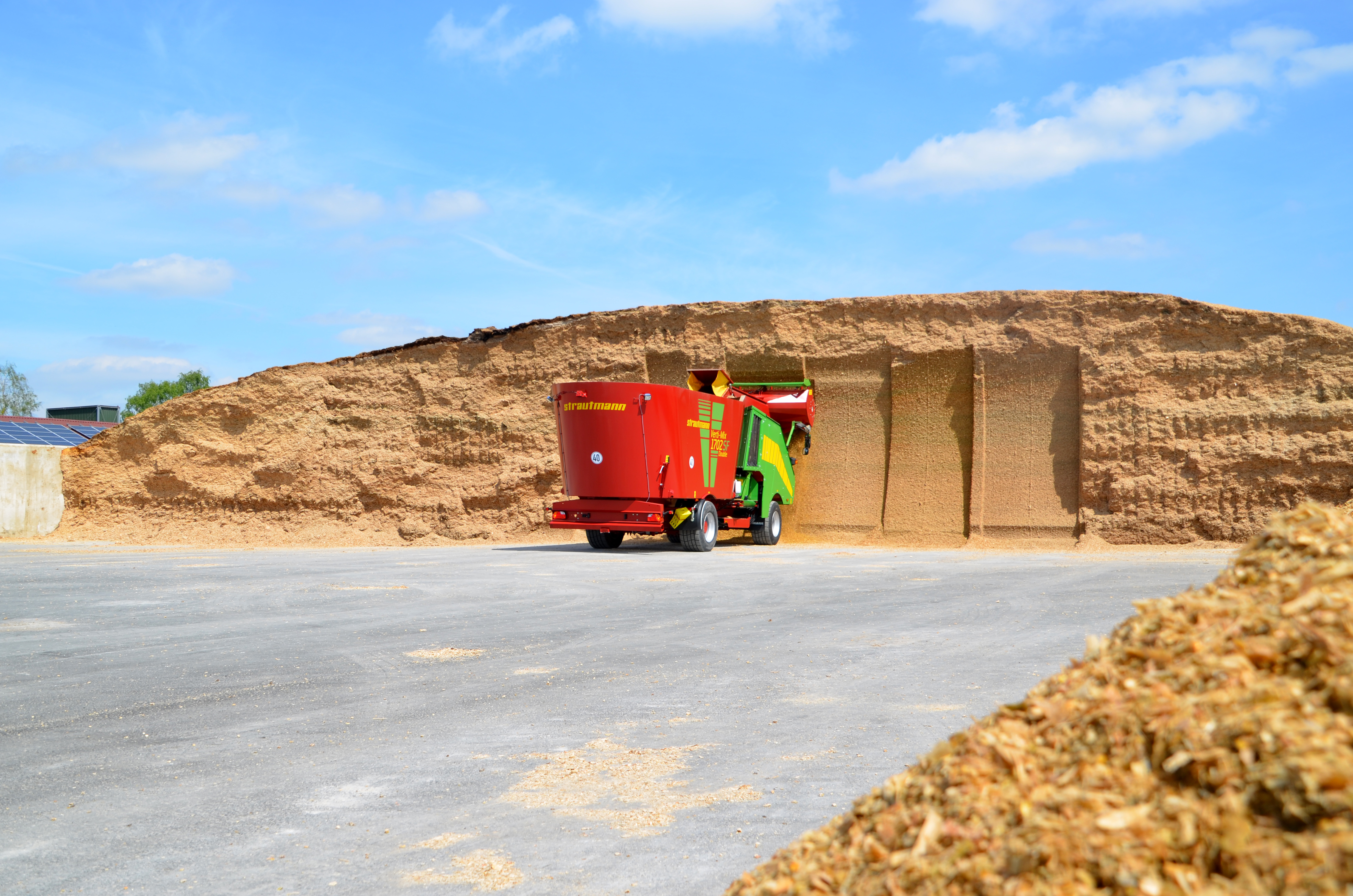

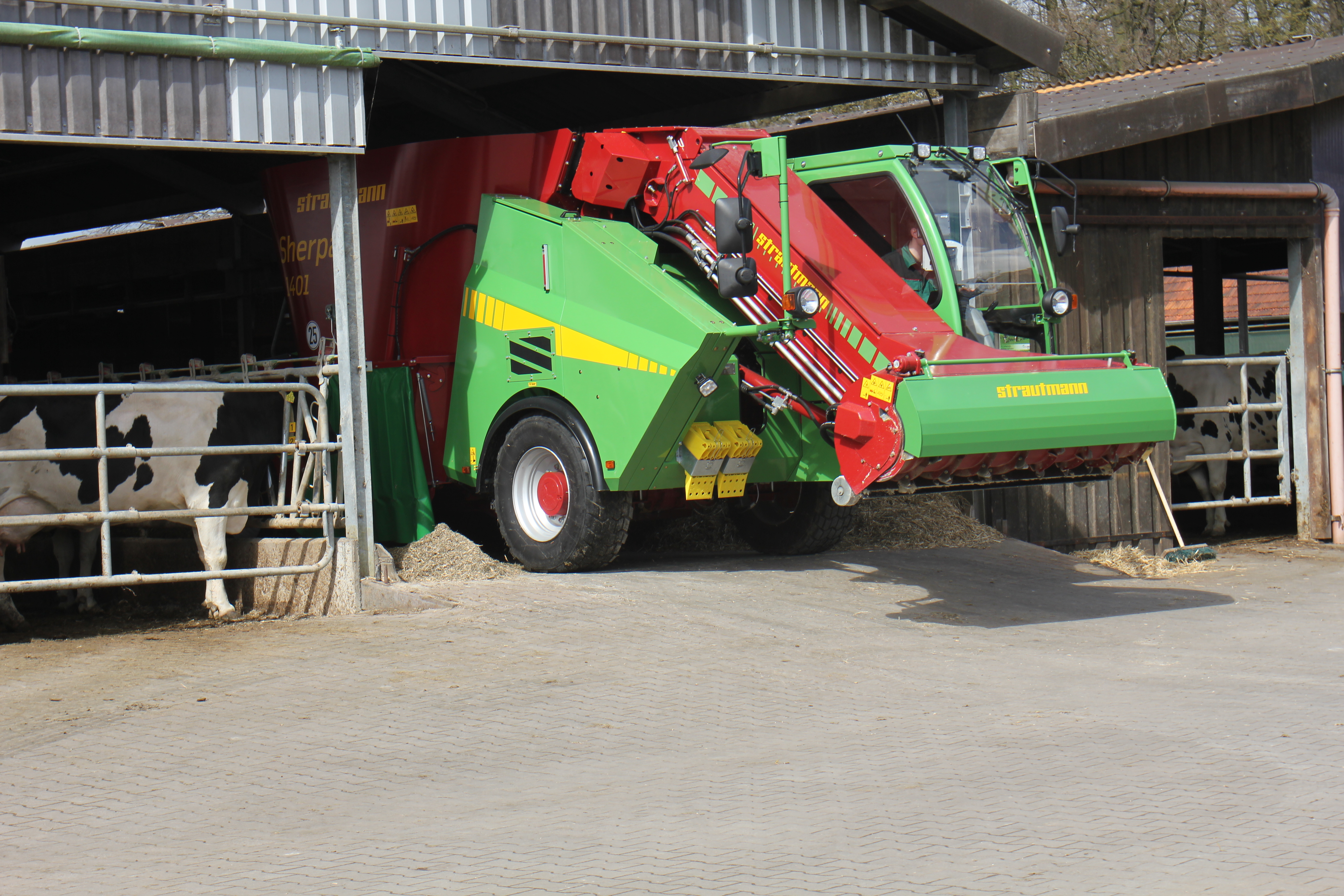

photo of cows being fed by a feed mixer wagon

Configure your machine

All Verti-Mix SF mixer wagons can be fully configured to meet individual farm requirement.

First, choose the capacity..... This should be chosen depending on the feed ration and the number of cows per m3 when feeding once a day.

Second, choose your discharge...... A huge range of discharge options, ranging from side discharge, conveyor and rear discharge allowing the feed or bedding to be placed exactly where required.


Milling system for optimum picking-up performance


  • Mounted at the center of the back of milling cutter for quick, gentle material flow
  • Smooth running, low-maintenance elevator conveyor made of rubber
  • Hydraulically powered
  • Infinitely variable speed adjustment
  • Reversible for exact picking-up of components

Fodder picking-up & transport

  • Clean picking up right to the bottom
  • Fast running elevator conveyor for clean feed flow
  • Optimum parabolic trajectory from the elevator into the mixing containerAutomatic cutter arm lowering for quick and effortless working

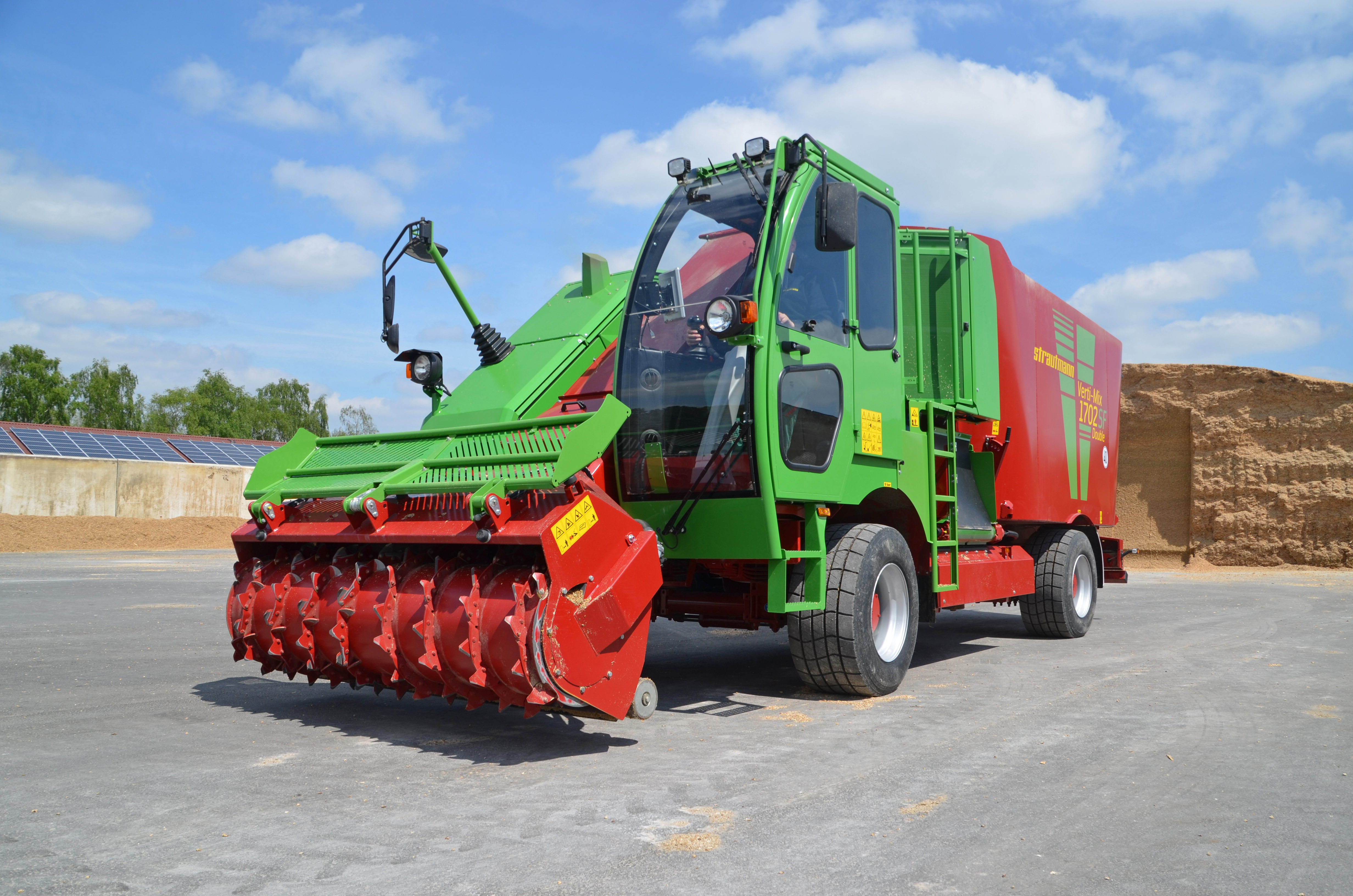

High-performance milling cutter

  • 2 m in width
  • 114 knives efficiently take the fodder out of the silo
  • Helical arrangement of knives for maximum picking-up performance with clean cut surface
  • 60 cranked and 54 straight knives

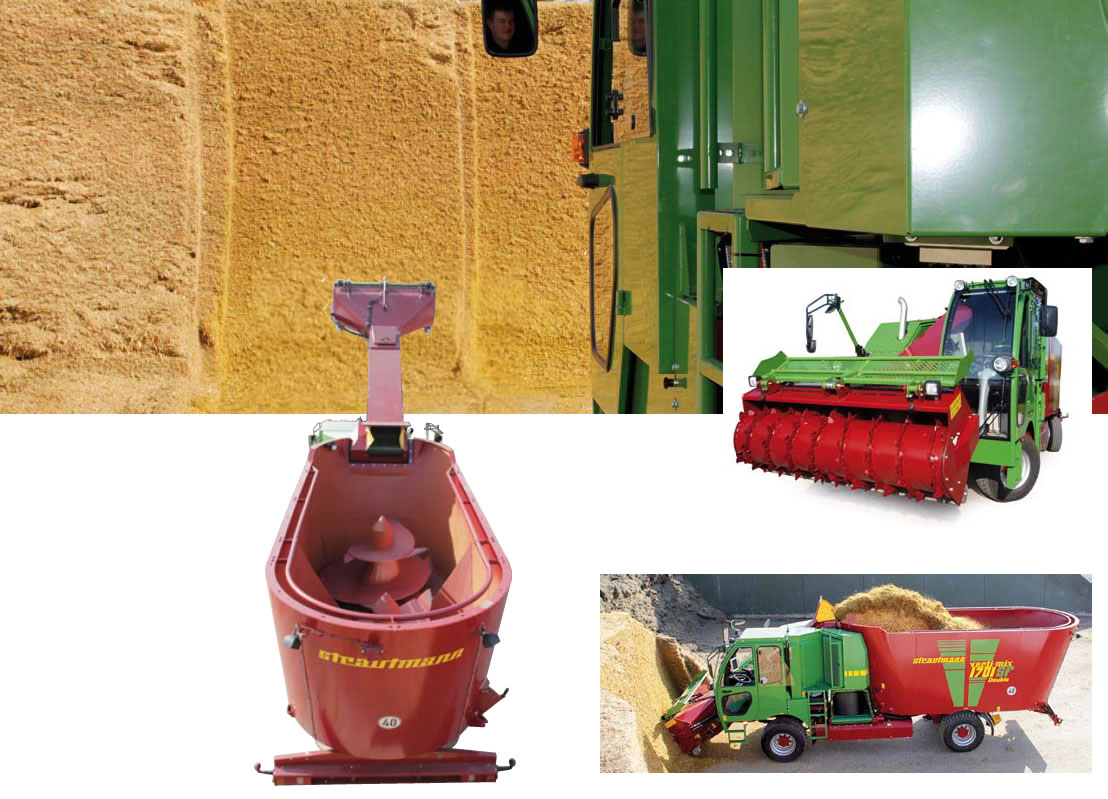

various photos of the self propelled diet feeder milling features

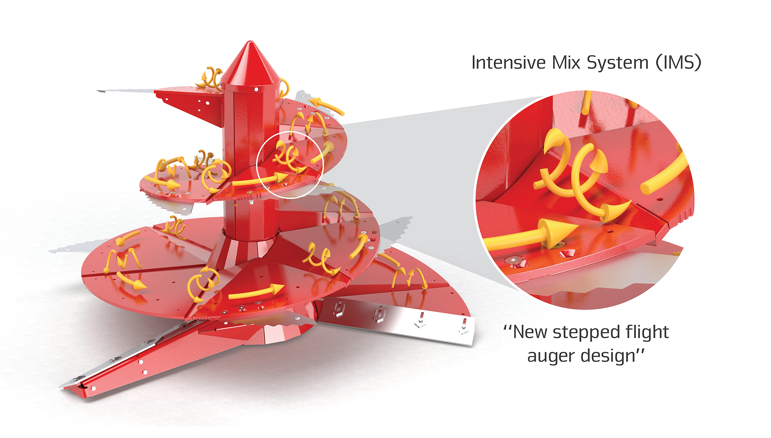

IMS mixing auger

Variability and strength for any purpose. Due to the patented knife adjustment system and the updated IMS auger design, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gearbox ensures long service life even under challenging conditions.

All Strautmann mixer wagons will now come fitted with an IMS auger as standard. Its stepped design enables a good mix to be achieved more quickly. This reduces the mixing time of each load, which due to the number of mixes each day, creates a saving on labour, wear and fuel over time.


Robust bearings and gearbox

The heart of the Vario mixing auger is the very heavy duty and durable gearbox. Stability and long maintenance intervals are achieved by means of a large-sized pair of tapered roller bearings, double sealing and a large grease chamber.

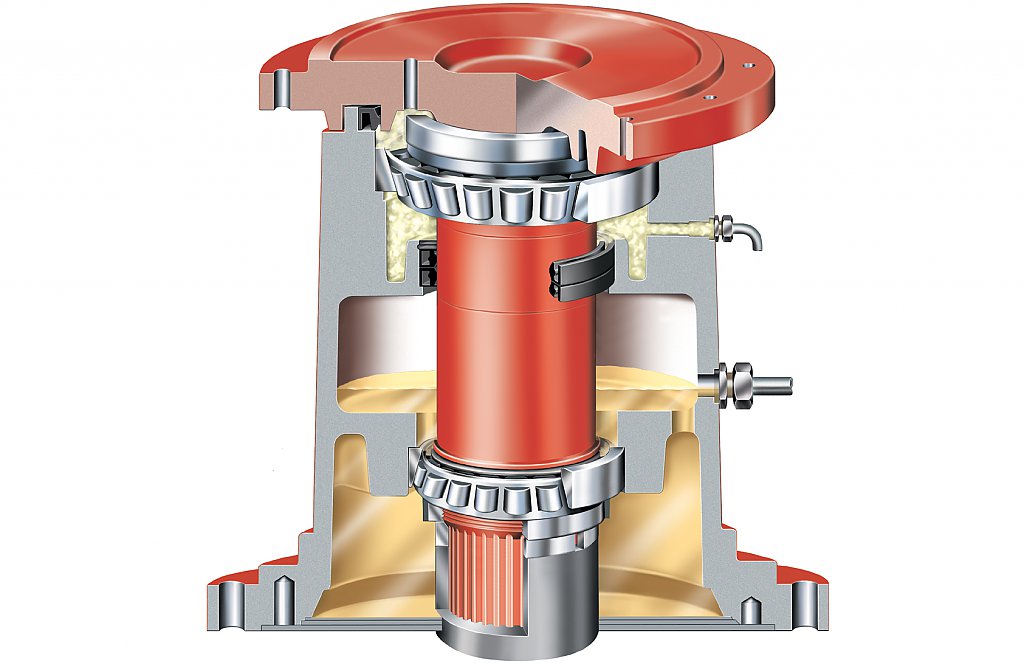

3d image of robust bearings and gearbox

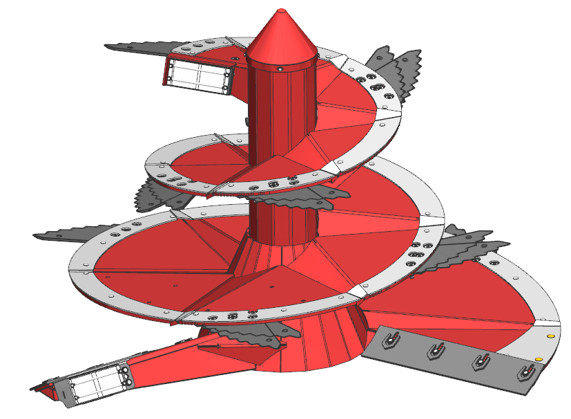

IMS mixing auger - INNODUR stainless steel wear strips

Longer term, machinery repair and replacement costs can be reduced by requesting the INNODUR stainless steel wear strip to be fitted to the leading edge of the auger. This is a replaceable part, further extending machine lifetime.

Magnetic system

Highly effective magnetic separation of metallic foreign objects. The Strautmann magnetic system (optional extra) directly mounted at the mixing auger offers optimum health protection for your high-yield cows. The system is mounted such that it is in direct and close contact with the mixed fodder, thus working very effectively.

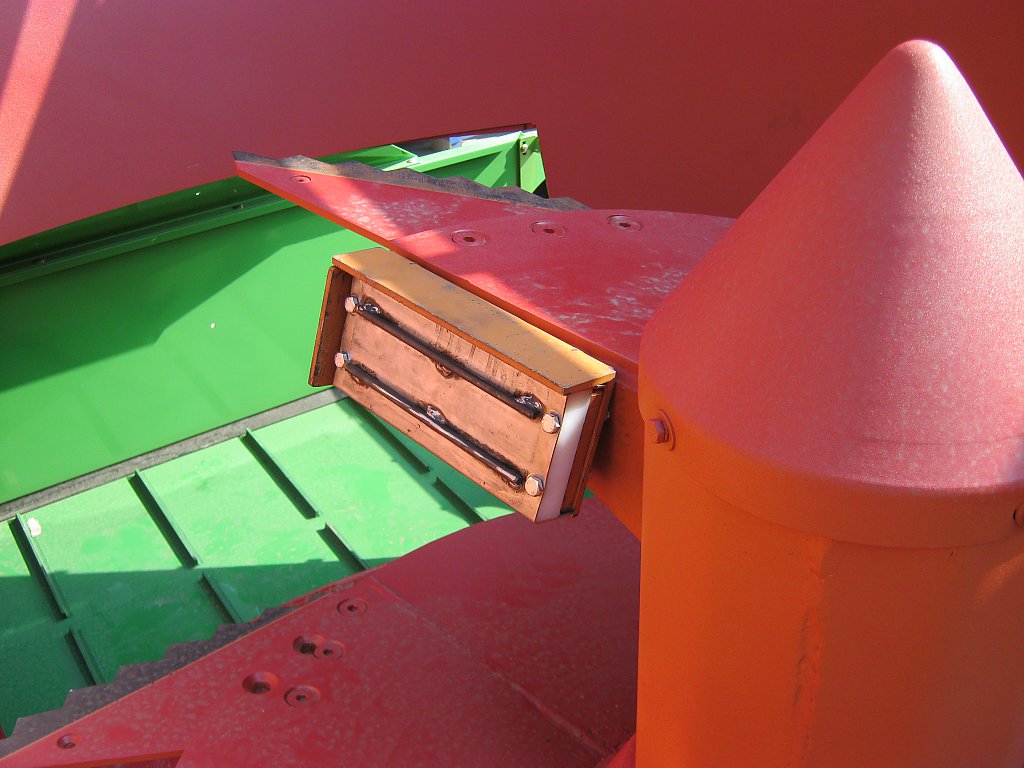

photo of the strautmann magnets option on a self propelled mixer wagon

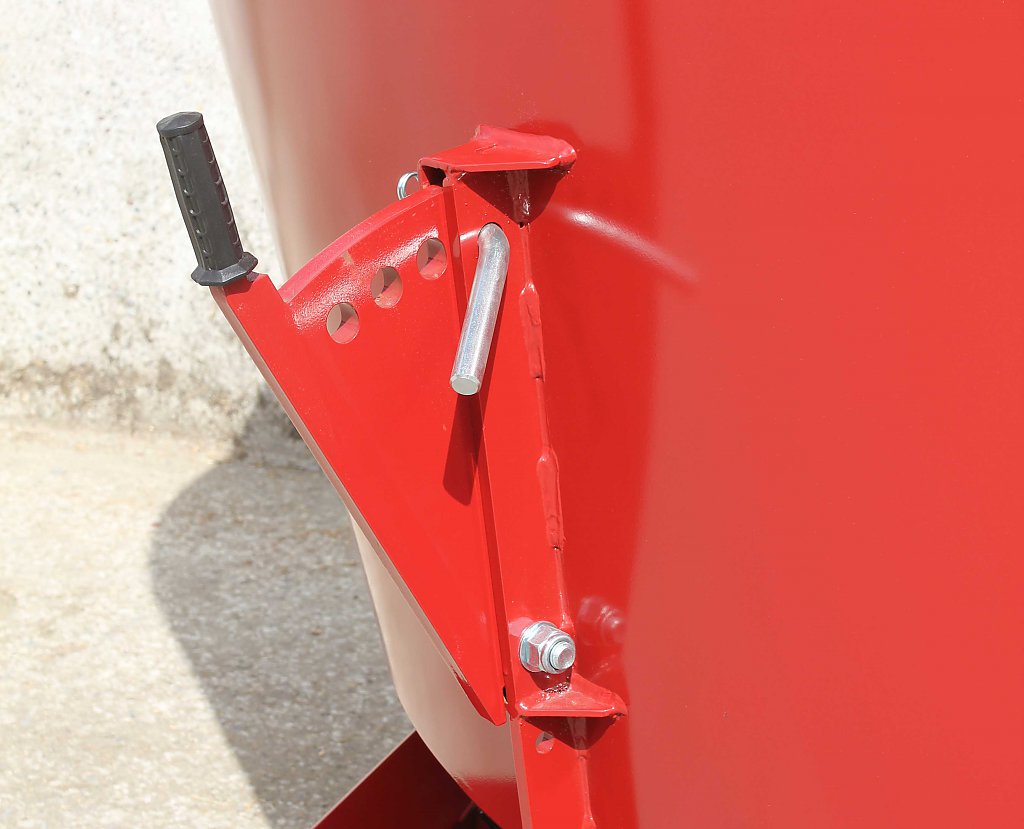

Manual counter cutters

Two manually adjustable counter-cutters enable the processing of larger quantities of long-fibre fodder such as round and square bales.

photo of the manual counter cutters on the self propelled mixer wagon

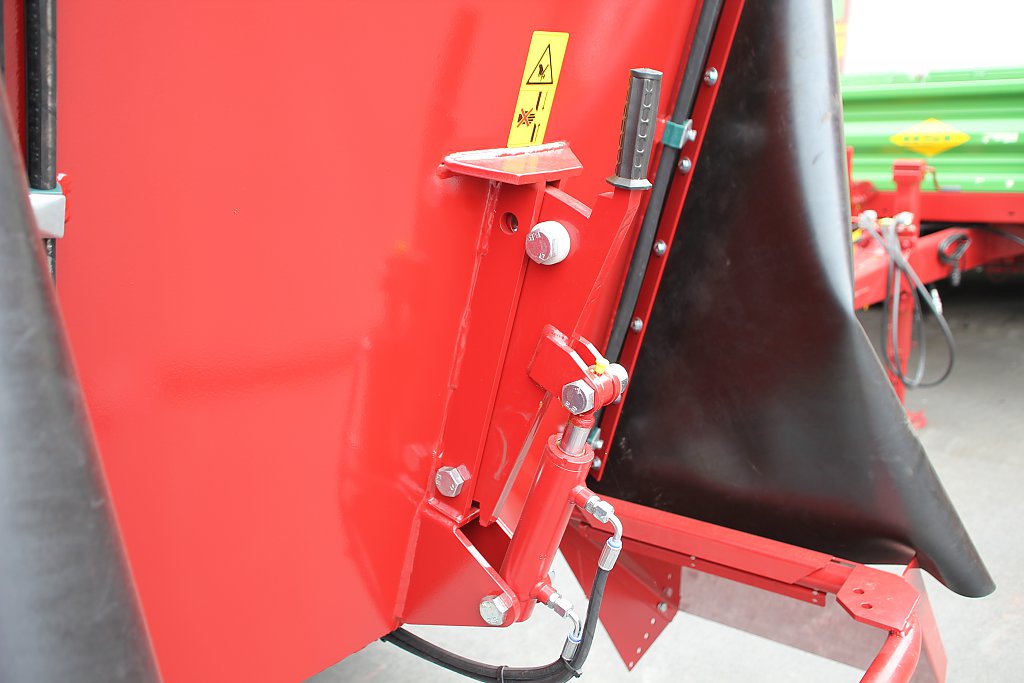

Hydraulic counter cutter

The optional two hydraulic counter-cutters can be directly adjusted from the driver seat.

photo of the hydraulic counter cutters on the self propelled mixer wagon

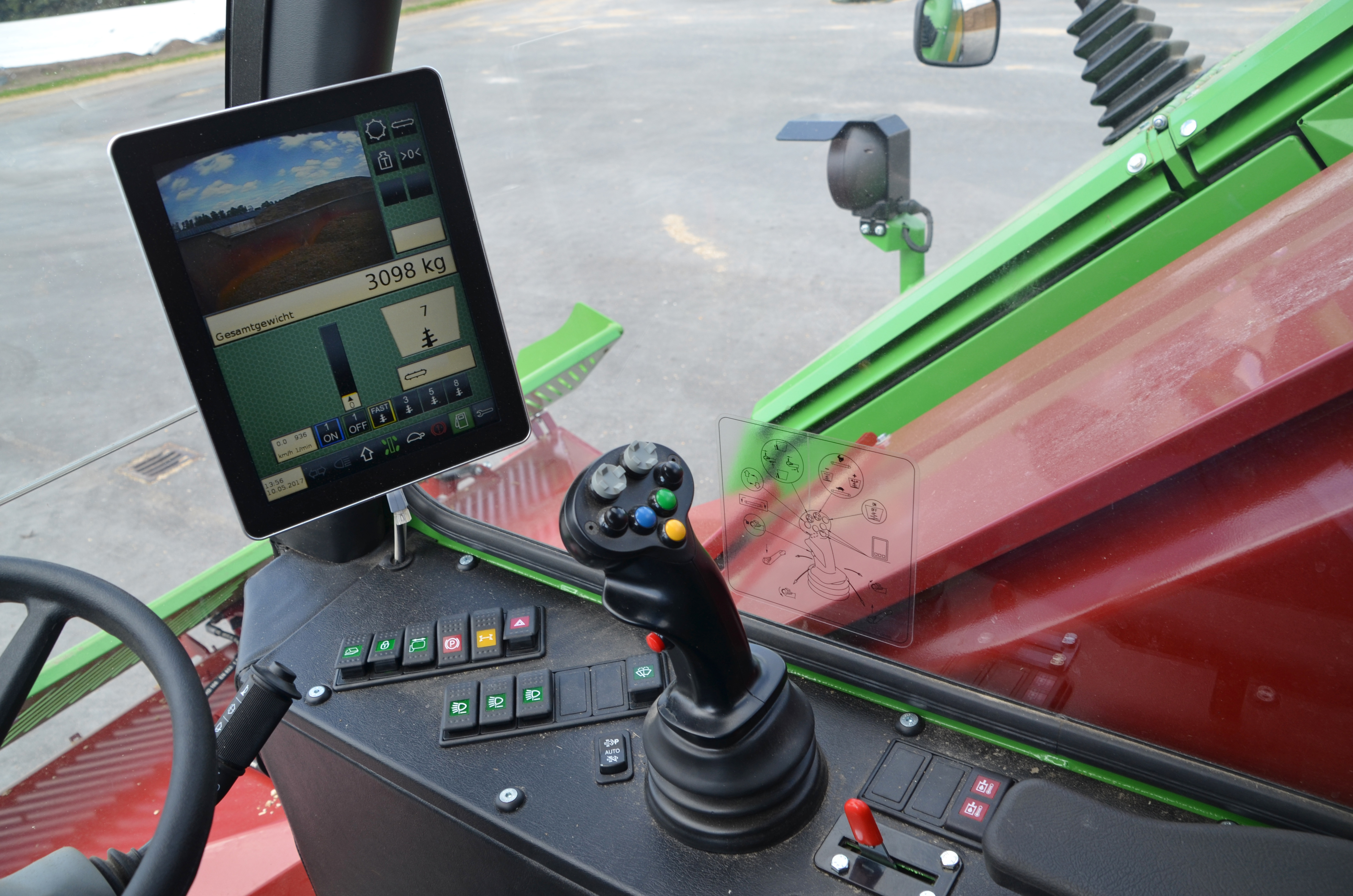

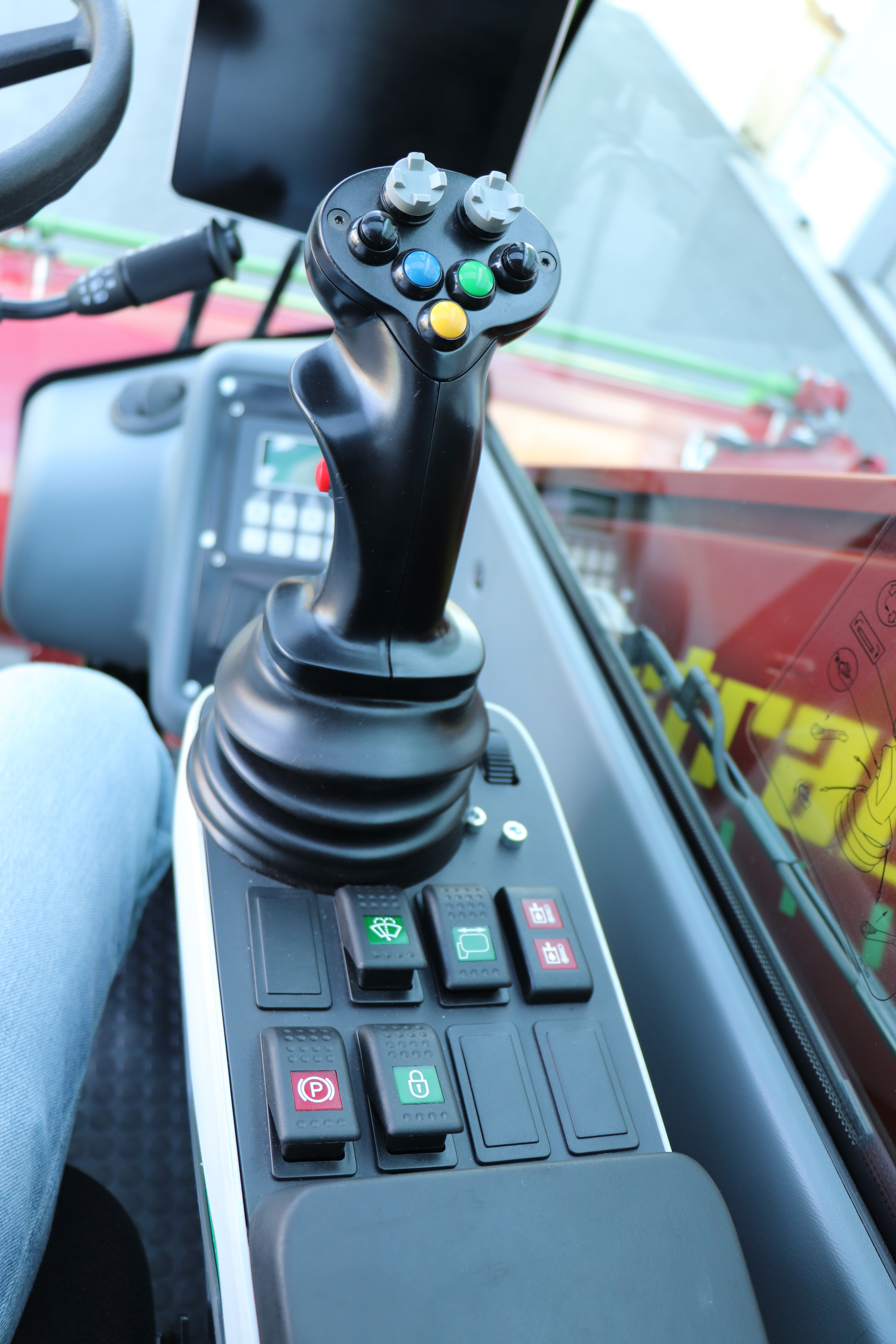

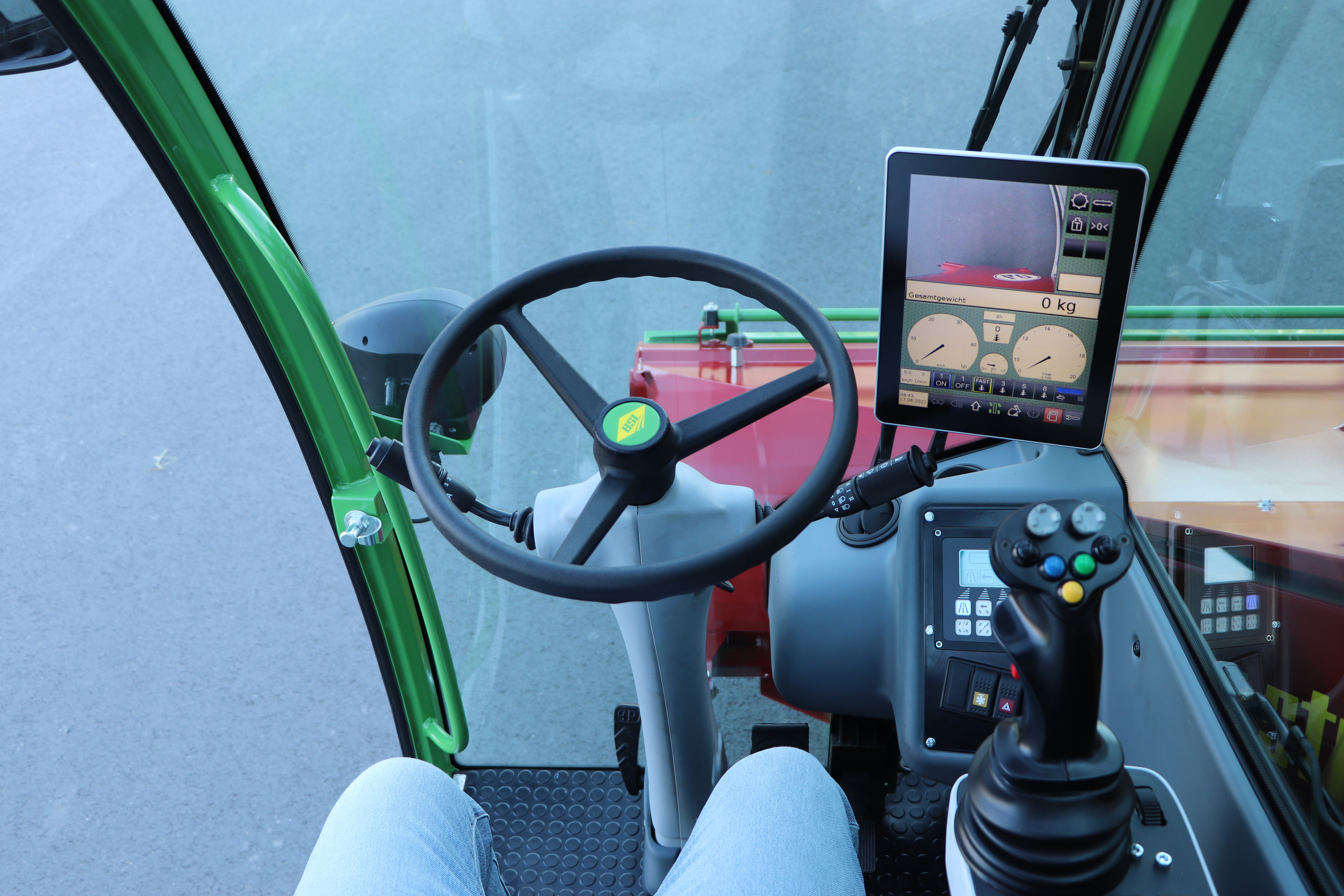

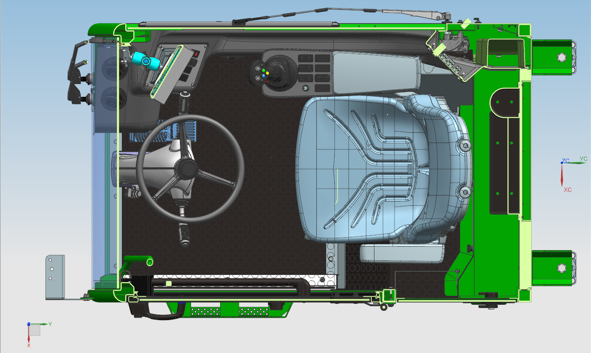

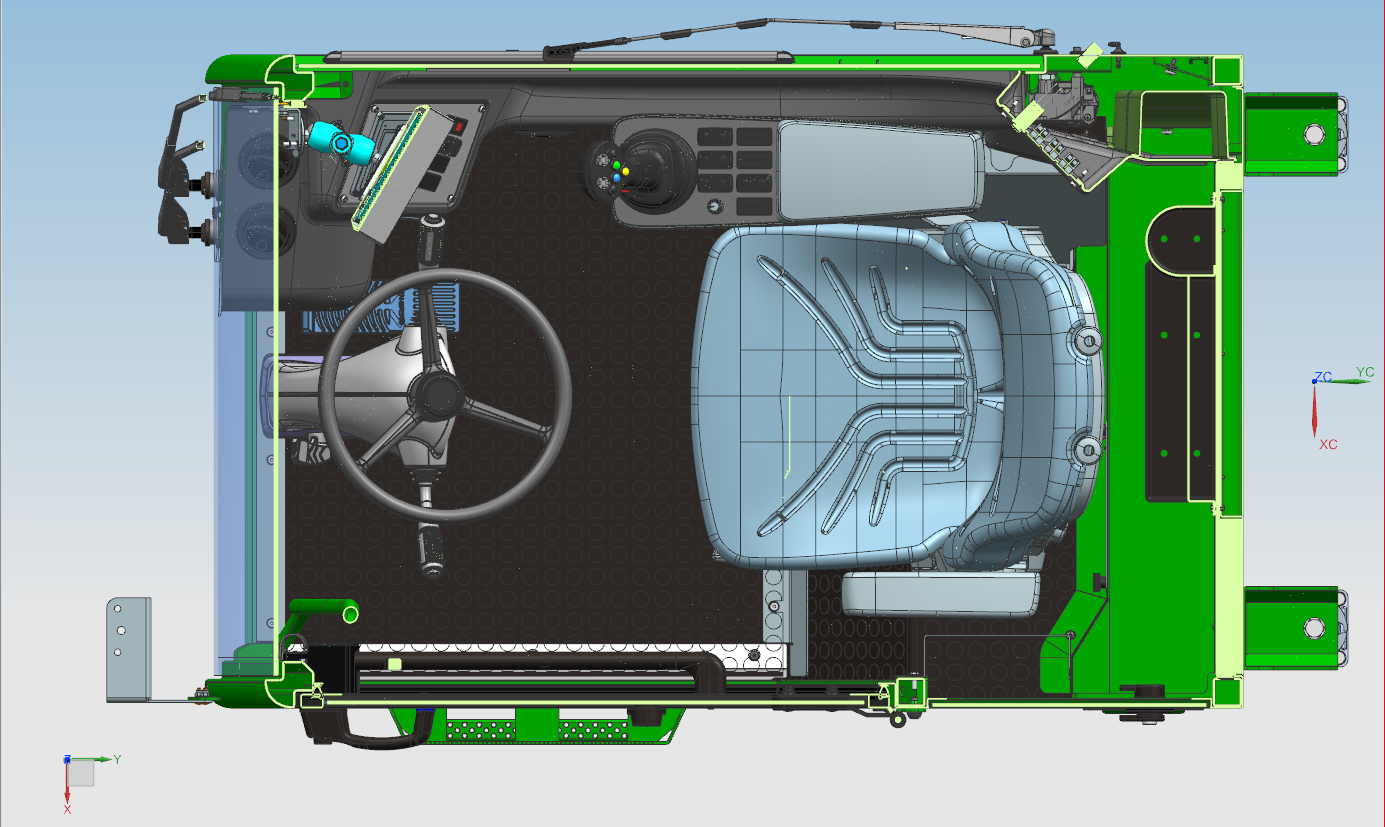

Drivers cabin

In 2022, Strautmann's self-propelled mixer wagons received a completely redesigned driver's cabin, to optimise towards operator comfort.

The changes provide more space within the cabin, the addition of a variably adjustable armrest, as well as a continuous window in the cabin ceiling has been extended to increase the operators view when milling at a greater height.

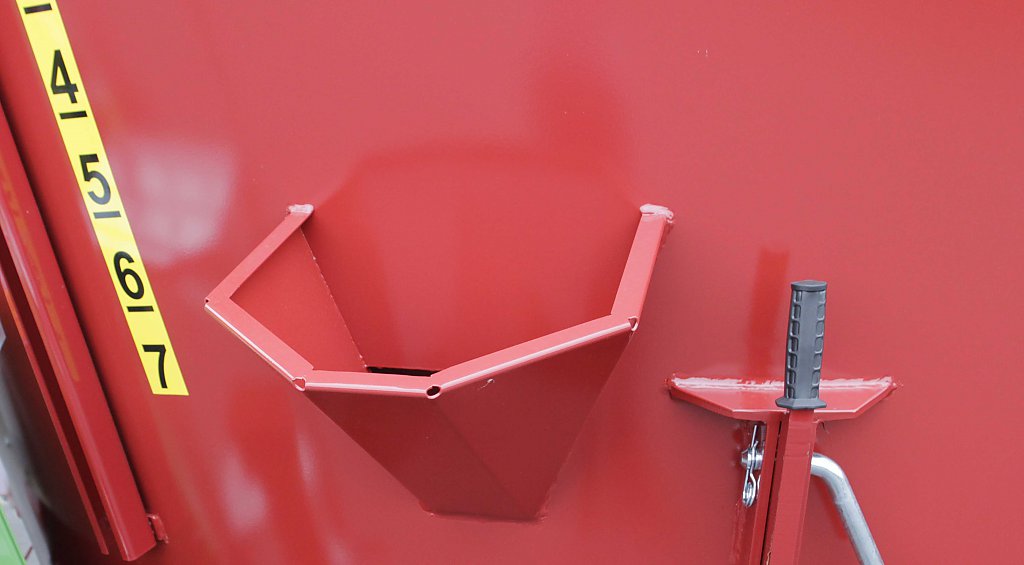

Feed funnel

A mineral feed funnel can be mounted at the mixing container on request. This makes it easier to fill in smaller quantities of fodder such as e.g. mineral feed or lime.

photo of the optional mineral feed funnel that can be added to your self propelled diet mixer

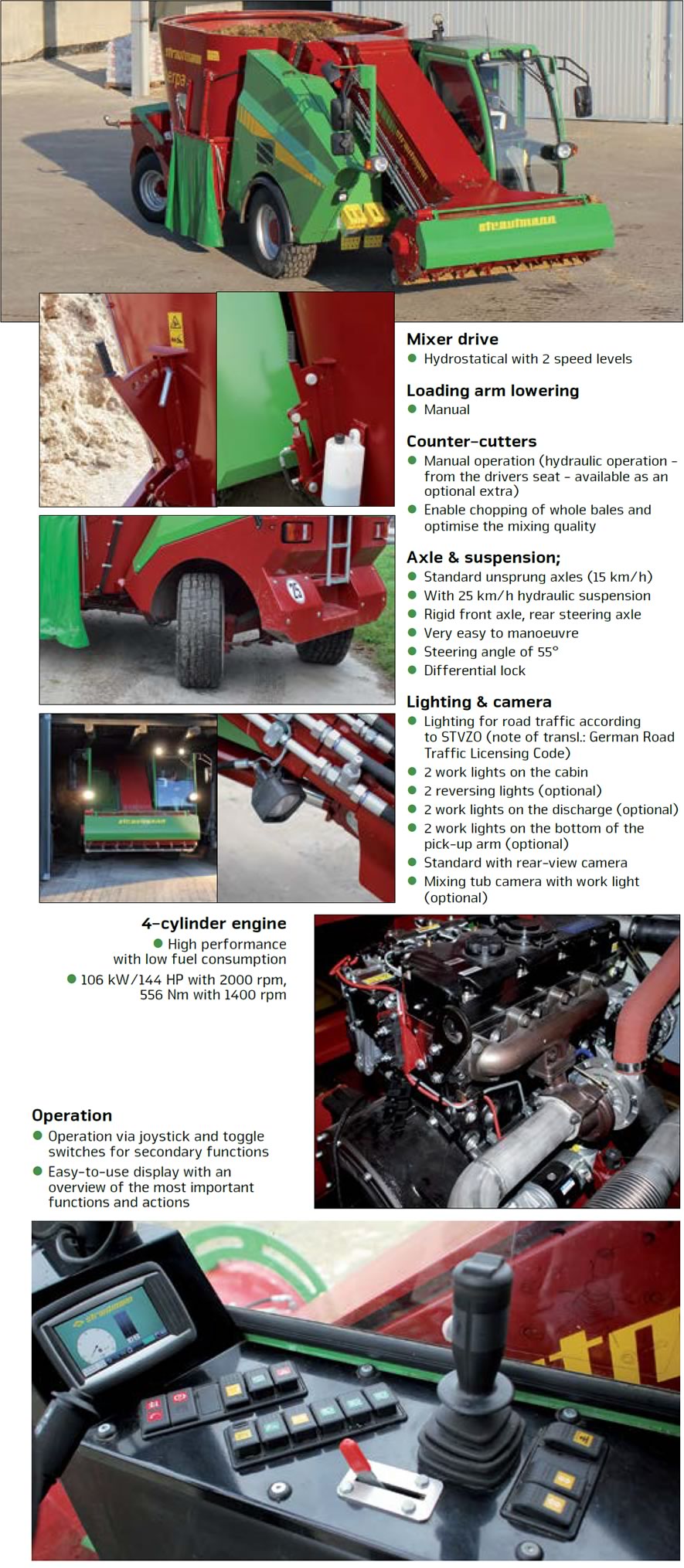

Verti-Mix Sherpa: equipment and controls

photo of the verti mix sherpa self propelled diet feeder

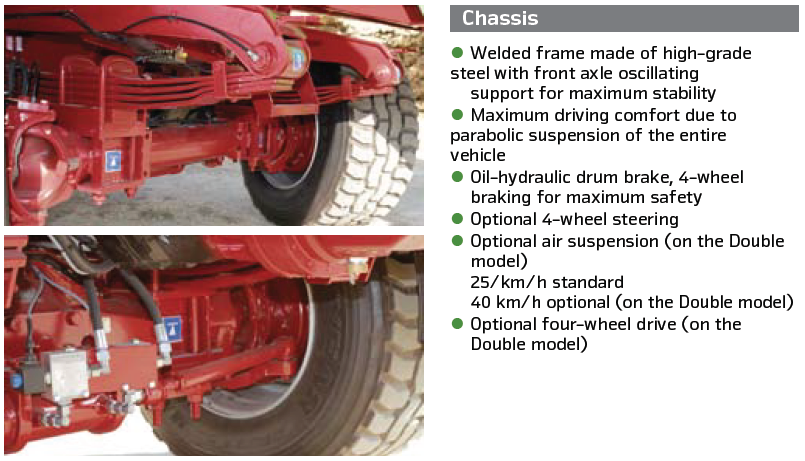

Verti-Mix SF: chassis

photos of the chassis on the self propelled diet feeder

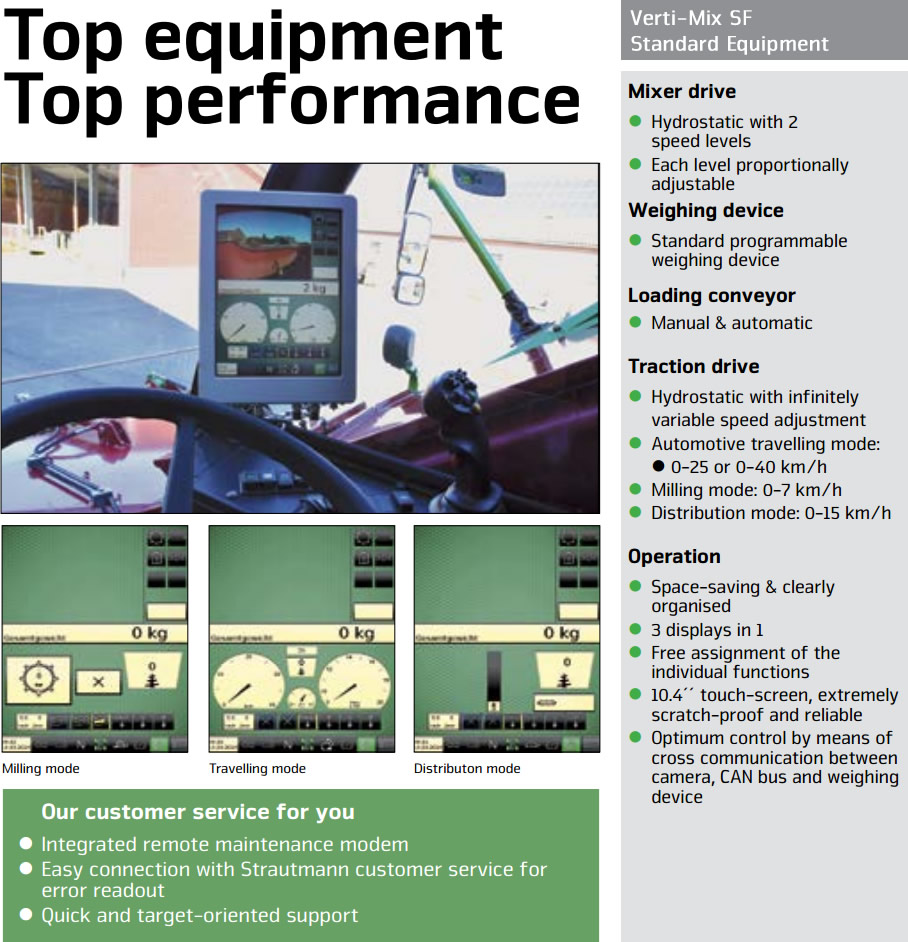

Verti-Mix SF: equipment and controls

photos of the features on the verti mix sherpa self propelled diet feeder

See Verti-Mix Sherpa model section for control details.

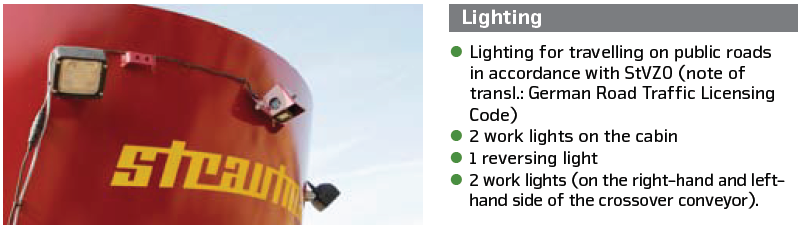

Verti-Mix SF: Lighting

photos of the built in lights and lighting on the verti mix sherpa self propelled diet feeder

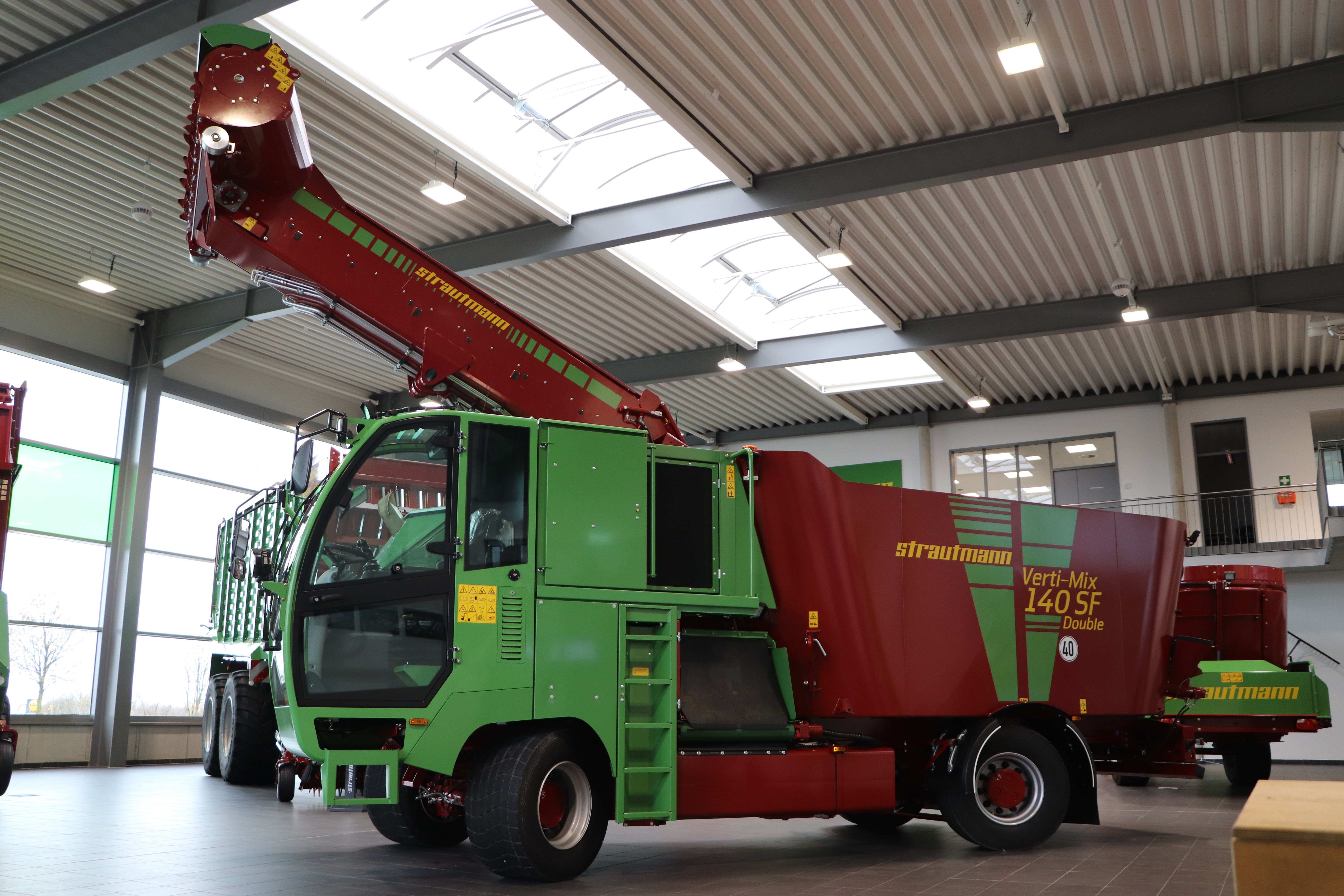

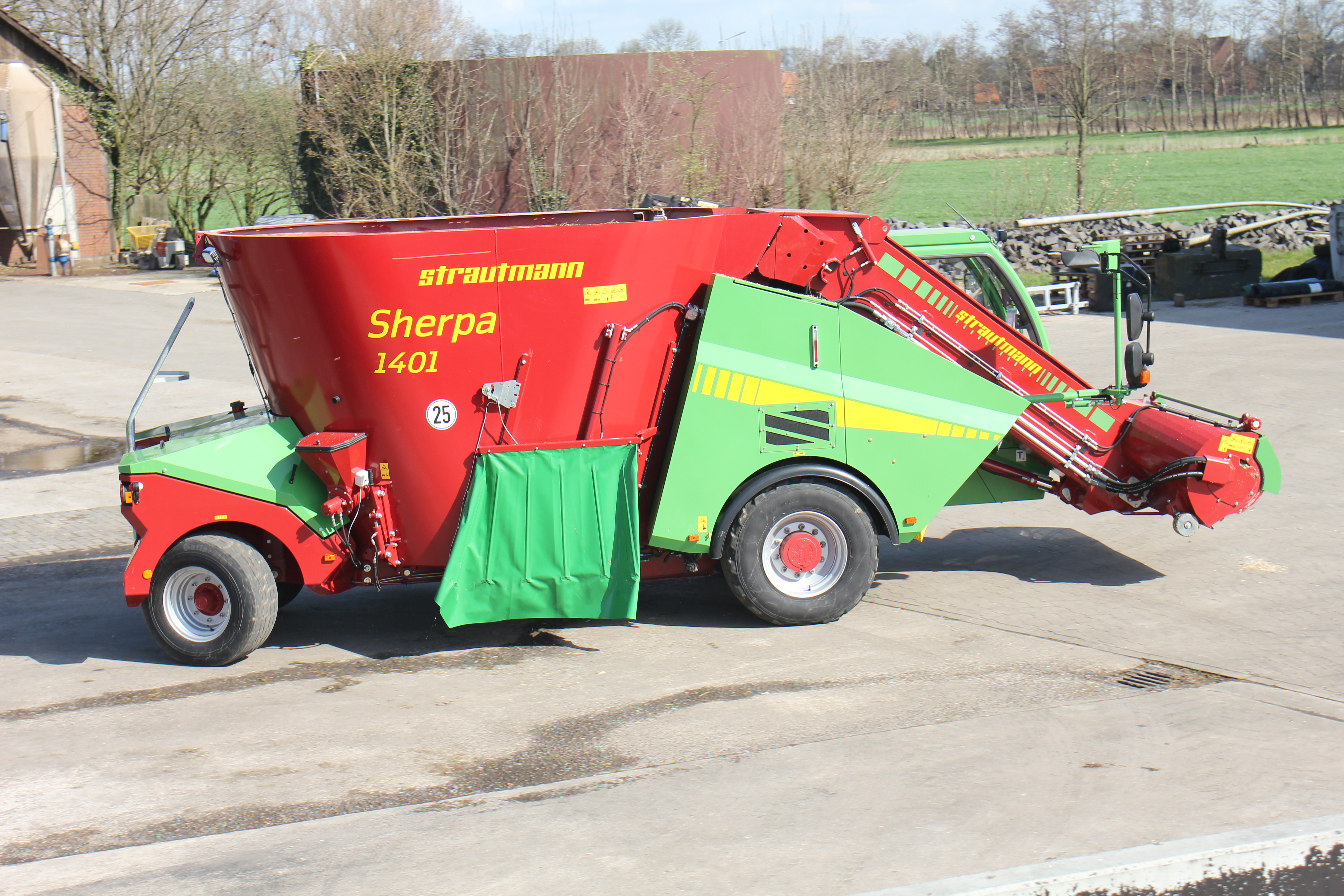

Verti-Mix Sherpa 120 / 140

photo of the Verti-Mix Sherpa 1201 / 1401

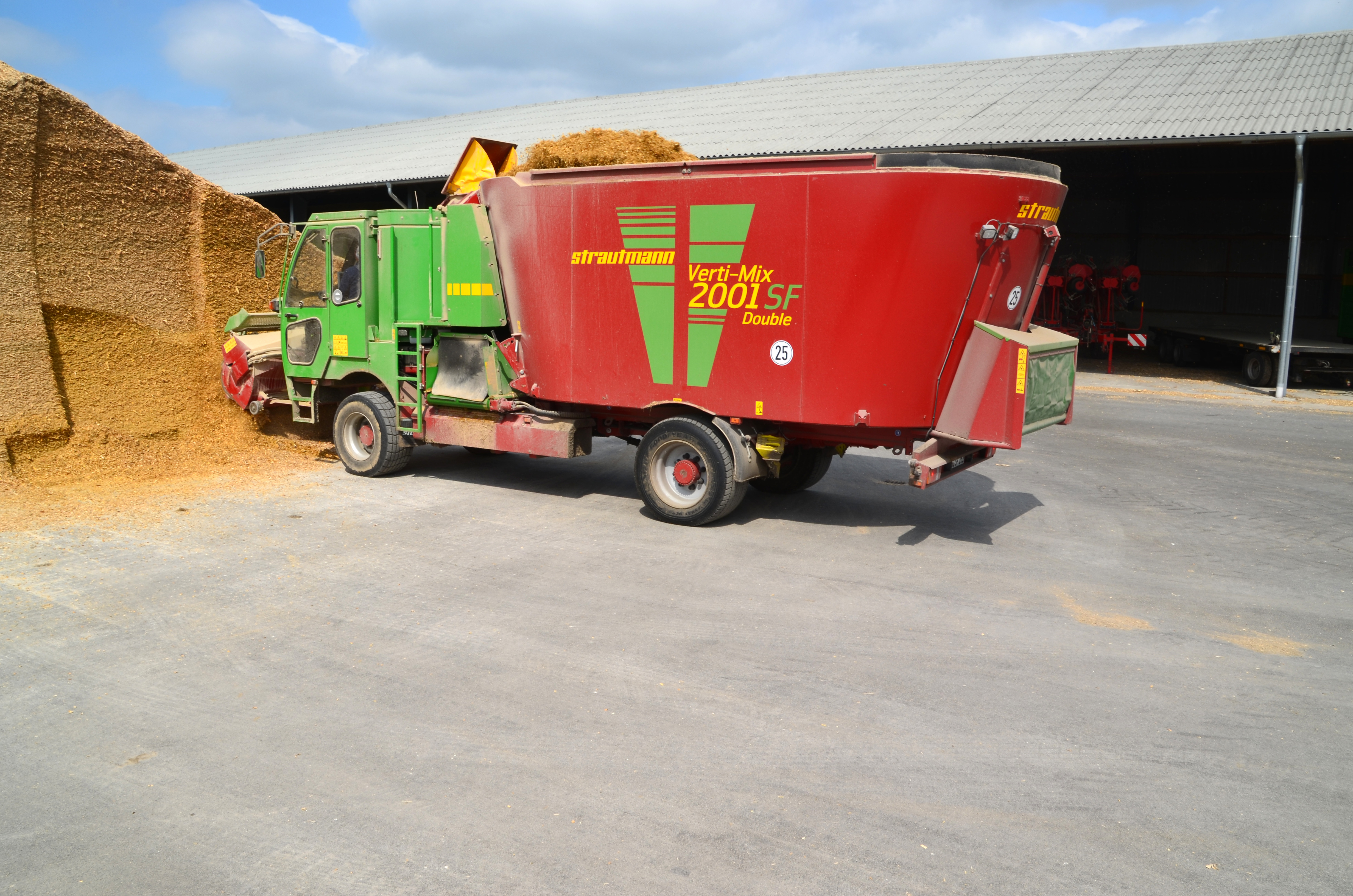

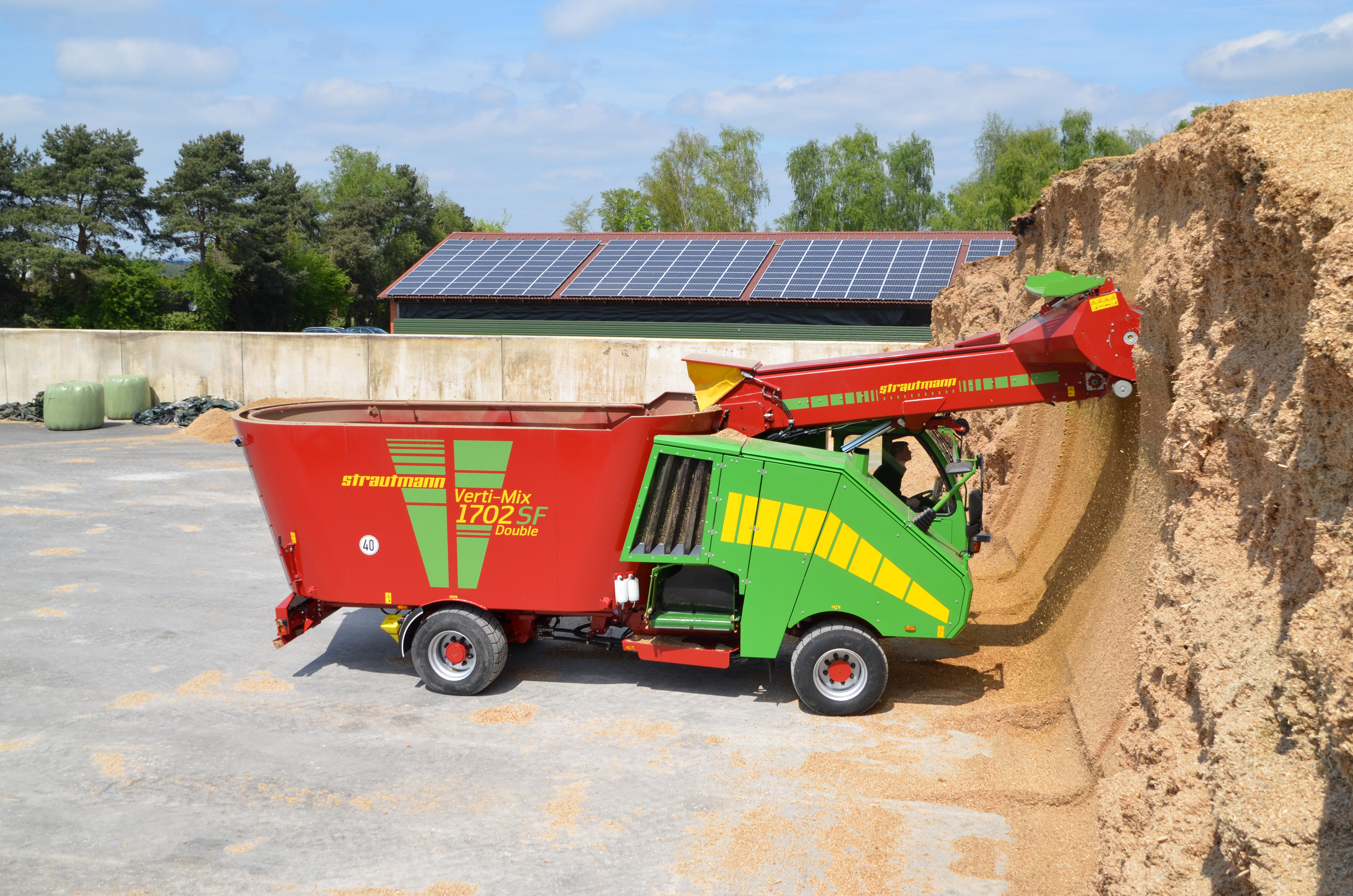

Verti-Mix SF Single 1102 / 1302 / 1502 - Double 1402 / 1702 / 2002

The Strautmann self-propelled one auger mixer has a capacity between 11 and 15 m³, depending on the machine. Easy handling combined with interesting technical equipment make the Verti-Mix SF the ideal entry-level model and the reliable partner for future-oriented enterprises.

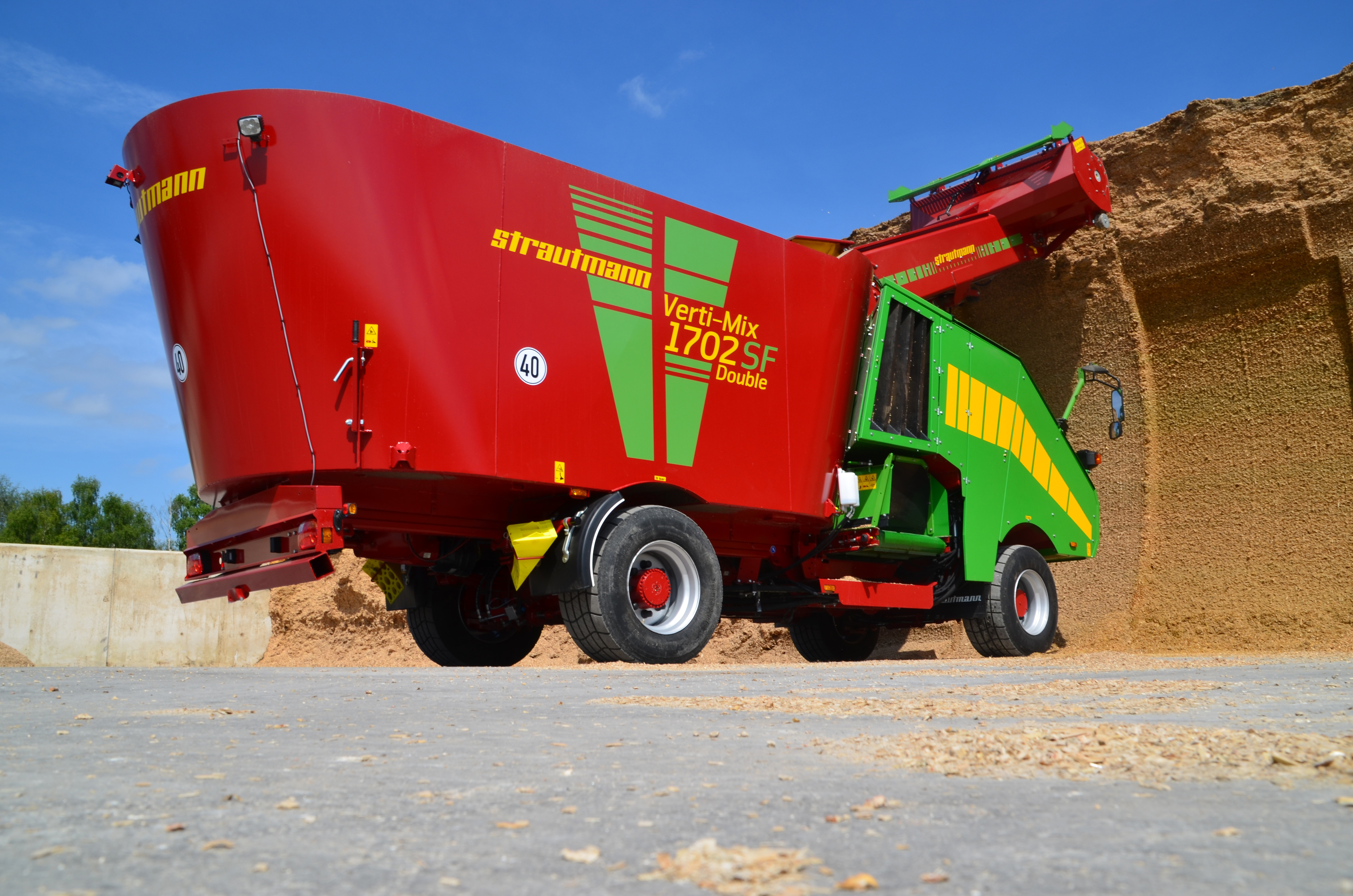

Two augers for favorable dimensions and efficient working – that is what the Strautmann Verti-Mix Double SF offers. With its capacity of 14 - 20 m³ and sophisticated technology, this fodder mixing wagon is suitable for larger enterprises with demanding requirements in terms of handling and comfort.

photo of the verti mix double auger self propelled diet feeder

Discharge options

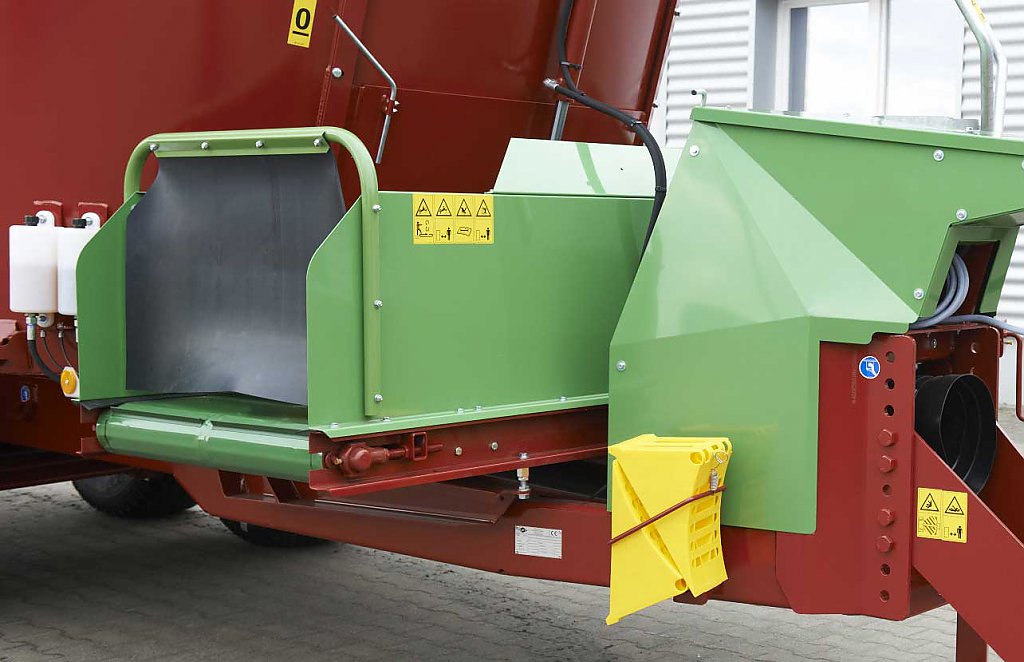

Front crossover conveyor: SF model only

Variable conveyor speeds achieved by means of different motors or direct adjustability enable the fodder discharge width to be adapted as far as right up to directly in front of the feed fence. A unique lattice bar roller as return roller for the crossover conveyor prevents the fodder from piling up between the roller and the conveyor. An optional hydraulic side shift of the conveyor gives added flexibility.

Photo of the front crossover conveyor

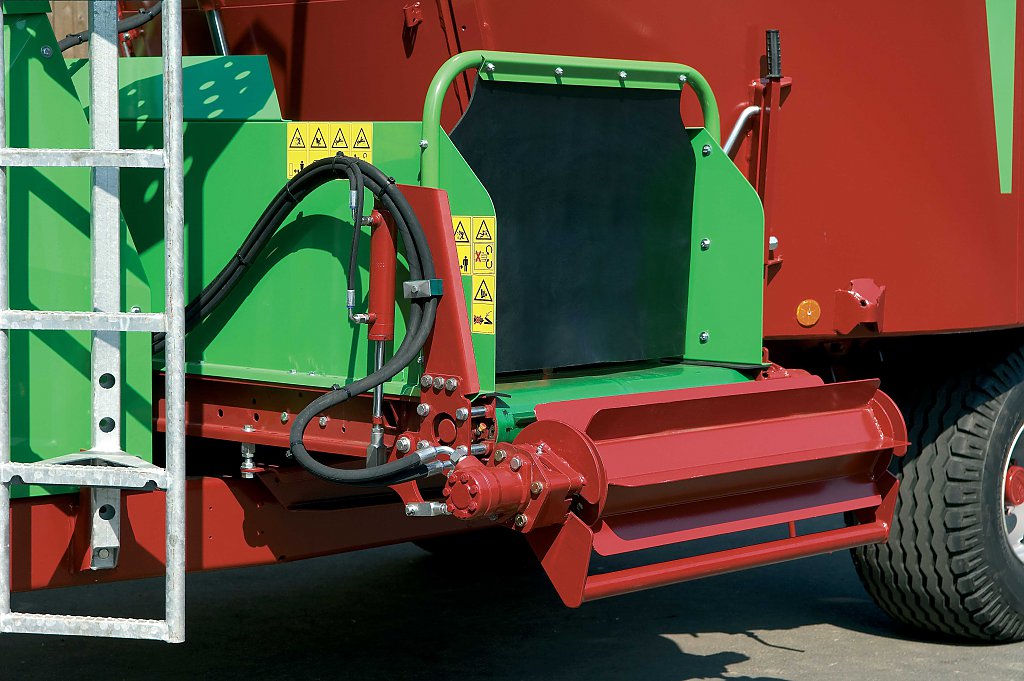

Fast bedding roller: SF model only

The cleaner and more germ-free the cubicle, the healthier the animals. The ideal litter materials are straw, peat, sawdust and lime. After the mixing process in the container has been finished, the litter is spread up to the head region of the cubicles via the drum – comfortably and reliably for maximum animal comfort and udder health. Only in combination with electrical operation.

Photo of the fast bedding roller

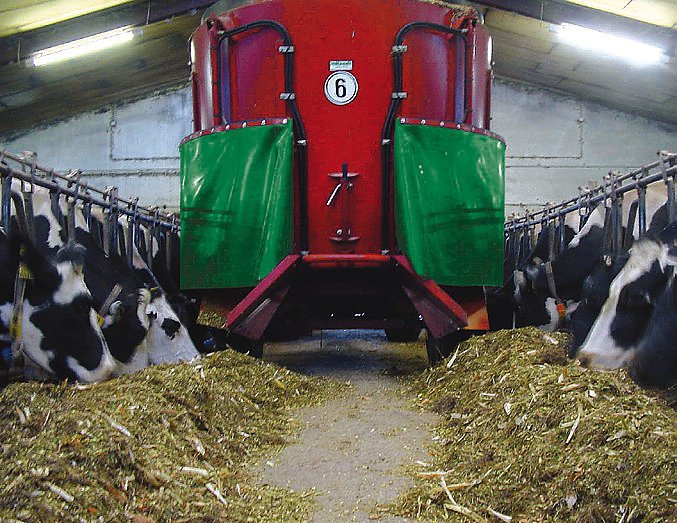

Rear discharge: SF model only

Discharge in narrow dead-end feeding passages. For comfortable feeding even in narrow dead-end feeding passages, side doors behind the wheels are being used. The fodder is loosely discharged on one or both sides behind the wheels.

photo of the rear discharge doors

Rear crossover conveyor: SF model only

Variable conveyor speeds achieved by means of different motors or direct adjustability enable the fodder discharge width to be adapted as far as right up to directly in front of the feed fence. A unique lattice bar roller as return roller for the crossover conveyor prevents the fodder from piling up between the roller and the conveyor.

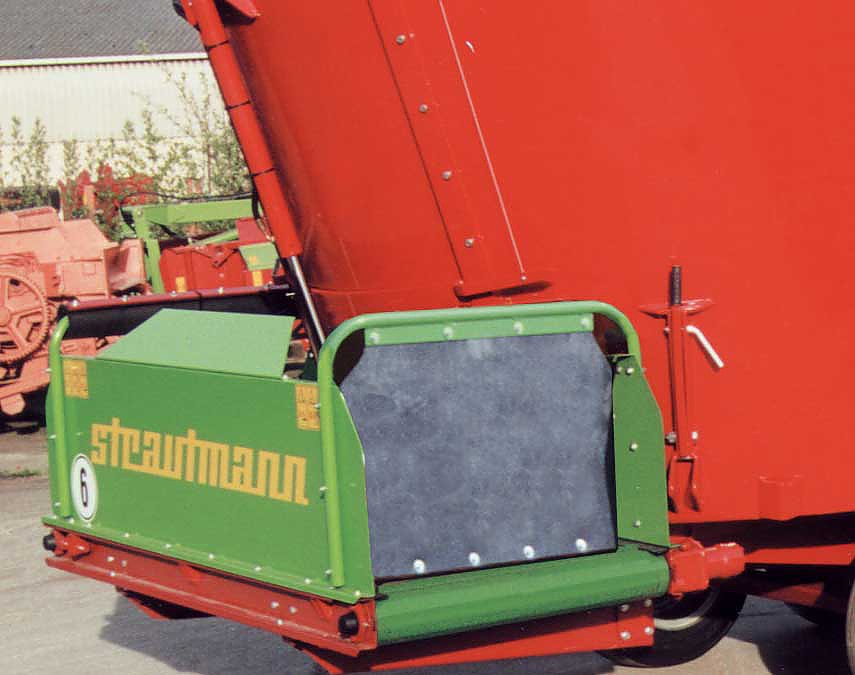

photo of the rear crossover conveyo

Rear centre discharge: SF model only

For preparation of premixes or central fodder discharge on the feeding table, Strautmann offers a rear centre discharge.

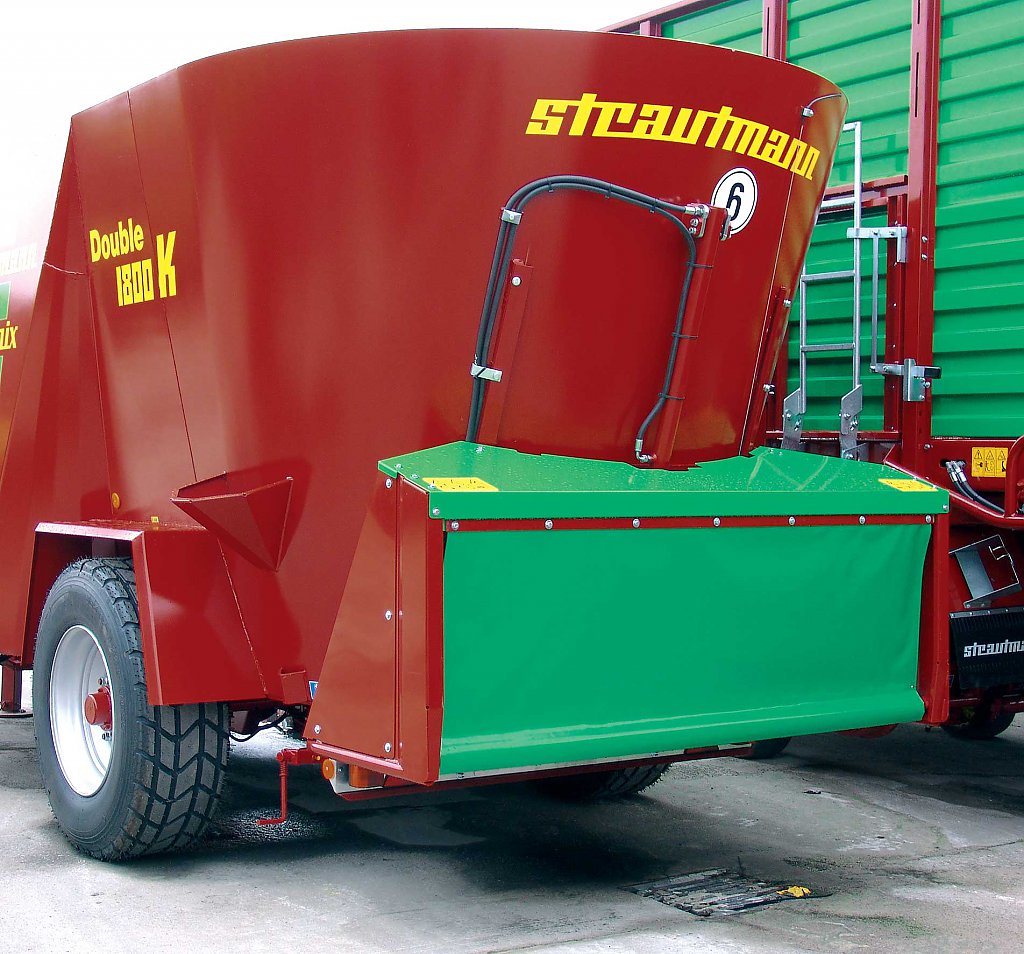

photo of the rear centre discharge door

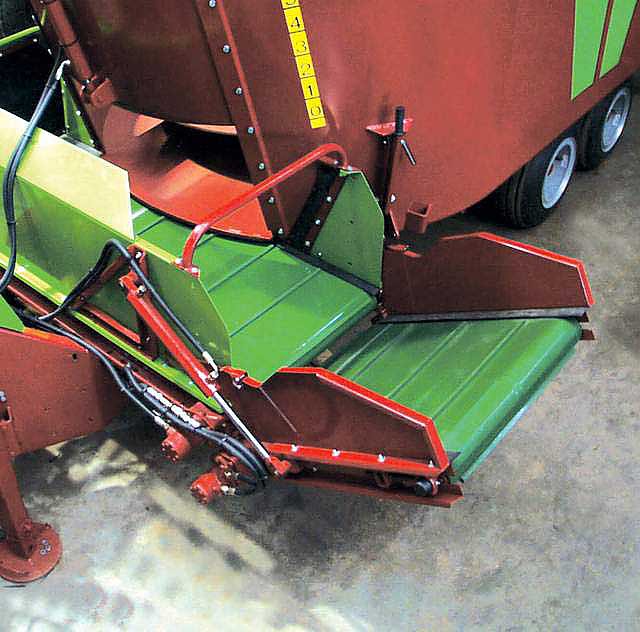

Conveyor extension, crossover conveyor: SF model only

For higher troughs, a 1m long conveyor extension adjustable in height can be mounted at the side of the crossover conveyor.

photo of the conveyor extension for the crossover conveyor

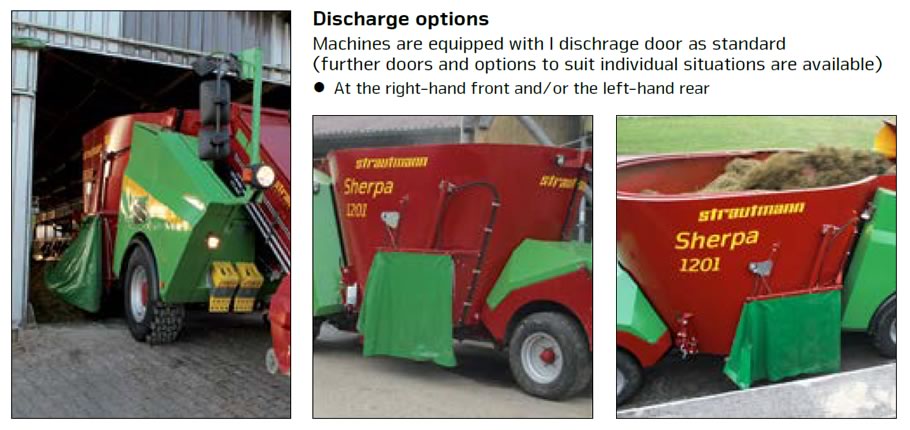

Side door discharge: Sherpa model only

photo of the side door discharge
