VERTI-MIX - EXPERT

The Expert range of Strautmann trailed diet feeders offer flexibility and can be configured to meet individual farm requirements. Once the required capacity had been decided upon, discharge, controls and weighing device can all be specified.

The mixing tub design is also patented and provides the container with additional rigidity whilst also adding flexibility, by enabling extensions to be added, increasing the capacity of the mixing tub and negating the requirement to purchase a larger machine when herd size increases.

Expert Range - time-proven with extendable capacities, a range of discharge options and up to 8 weigh cells

IMS MIXING AUGER

Variability and strength for any purpose. Due to the patented knife adjustment system and the updated IMS auger design, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gearbox ensures long service life even under challenging conditions.

All Strautmann mixer wagons now come fitted with an IMS auger as standard. Its stepped design enables a good mix to be achieved more quickly.

This reduces the mixing time of each load, which due to the number of mixes each day, creates a saving on labour, wear and fuel over time.

The perfect harmonisation of mixing auger geometry and the distance to the container wall forms the basis for quick and homogeneous mixing.




Robust bearings and gearbox

The heart of the IMS mixing auger is the very heavy duty and durable gearbox. Stability and long maintenance intervals are achieved by means of a large-sized pair of tapered roller bearings, double sealing and a large grease chamber.

Weigh cells

Strautmann diet feeders are supplied with a minimum of three weigh cells.

As capacity increases so does the number of weigh cells, up to an impressive eight on a triple auger machine. More connection points between the chassis and tub means superb weight stability and accuracy.




SPEC-UP YOUR MACHINE

INNODUR stainless steel wear strips

Longer term, machinery repair and replacement costs can be reduced by requesting the INNODUR stainless steel wear strip to be fitted to the leading edge of the auger. This is a replaceable part, further extending machine lifetime.

Bale cutting knife

Special knife options help you to adapt your IMS mixing auger to your requirements.




Feed funnel

A mineral feed funnel can be mounted at the mixing container on request. This makes it easier to fill in smaller quantities of fodder such as e.g. mineral feed or lime.

Root crop knife

An optional row of cutting knives are available to assist with chopping root crops such as potato and beet.




Rear-view camera, monitor and headlights

Available with optional lights and optional rear view camera with monitor.

Extensions

The patented container design at the top container edge provides the Strautmann mixing container with additional rigidity. It serves as a basis for variable container attachments helping you to adapt the capacity of the mixing container to your operational requirements. Two optional extensions with different heights enable you to flexibly adapt your Verti-Mix - Expert diet feeder to your needs (180mm and 360mm).




Protective cover

More safety for your animals!

Protective cover between mixing auger and coaxial gearbox

  • Made of robust plastic
  • Recommended for compact mixtures (compact TMR) or for addition of larger quantities of water
  • Reliable protection against fodder deposits between mixing auger and gearbox

Magnetic system

Silage and any kind of purchased fodder might contain metallic foreign objects which might harm your dairy cattle. Strautmann magnetic system (optional) mounted directly at the mixing auger protects your valuable livestock against internal injuries, thus ensuring herd health.

The magnets are mounted such that they have direct and immediate contact with the mixed fodder and thus offer very effective filtering out of metallic foreign objects without them being carried away again from the magnet by the following fodder.




Enclosed hay ring

Verti-Mix Expert diet feeders come as standard with an enclosed hay ring.

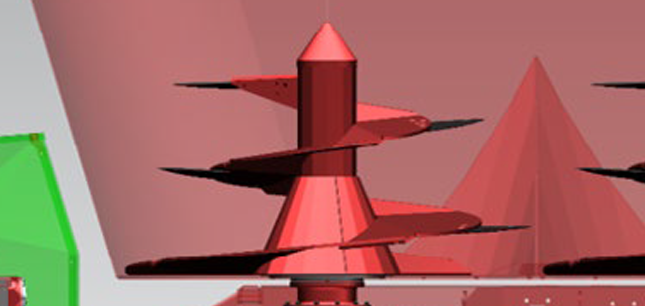

 20mm Heavy-duty mixing auger

15mm mixing augers are standard on all Verti-Mix Expert diet feeders, with a wear material of 10mm. Strautmann also offer a 20mm heavy-duty mixing auger with a wear material of 15mm, for even higher demands.




CONTROL OPTIONS

WEIGHING OPTIONS

PTM HL 50

  • 50 rations programmable
  • 30 components per ration by name
  • Alarm function during loading and unloading
  • Programming kg/animal or total weight
  • Entry of recipe names and component names
  • Large display of component names
  • Zeroing / calibration

PTM Advance Super USB

  • Programmable weighing device with data transfer. A complete feeding control including time recording is of fundamental importance for cost optimisation on dairy farms.
  • 150 recipes from 30 components
  • Read-out and management by means of included software
  • Optional: Wireless communication with farm PC

PTM AV 70

Radio remote control

  • The PTM AV 70 is a radio remote control to fit:
  • HL 50 and Advance Super USB.
  • 30 m of range
  • Possible installation on the charging vehicle
  • Convenient carrying by hand



DISCHARGE OPTIONS

Side Discharge

In the case of side discharge, the asymmetrical position of the discharge openings ensures optimum fodder discharge which results in a loose, homogeneous swathe. The fodder is discharged at the optimum position at the fodder mixing wagon, relative to the flow of material in the container. No travelling over the fodder.

Rear Discharge

Discharge in narrow dead-end feeding passages. For comfortable feeding even in narrow dead-end feeding passages, side doors behind the wheels are being used. The fodder is loosely discharged on one or both sides behind the wheels.

Side Chutes

Fodder-protecting discharge via adjustable side chutes. At the side discharge devices, adjustable chutes support the fodder discharge. The wheels do not roll over the discharged fodder. The side chutes can be equipped with an optional hydraulic actuating mechanism.

 Side Discharge Extension

If the machine is equipped with a side discharge door, an additional conveyor can be mounted in front of the discharge door to fill higher troughs.

Front Cross Conveyor

Variable conveyor speeds achieved by means of different motors or direct adjustability enable the fodder discharge width to be adapted as far as right up to directly in front of the feed fence. A unique lattice bar roller as return roller for the crossover conveyor prevents the fodder from piling up between the roller and the conveyor.

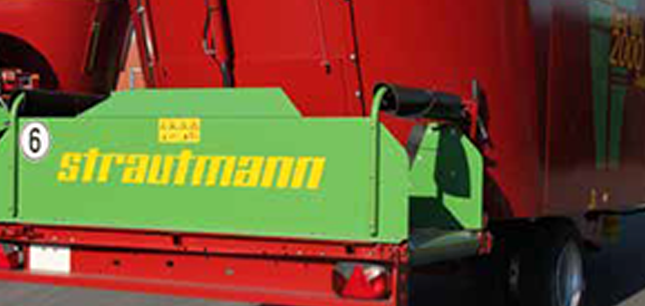

Rear Cross Conveyor

Variable conveyor speeds achieved by means of different motors or direct adjustability enable the fodder discharge width to be adapted as far as right up to directly in front of the feed fence. A unique lattice bar roller as return roller for the crossover conveyor prevents the fodder from piling up between the roller and the conveyor.

'V' Conveyor

Equipped with 2 standard hydraulic motors, the V-conveyor is often optioned when there is a requirement to both discharge at a distance to the machine or into
elevated troughs.

The V-conveyor offers discharge to the side (25 cm on both sides) and discharge at height (0-55 cm).

Cross Conveyor Extension

For higher troughs, a 1m long conveyor extension adjustable in height can be mounted at the side of the crossover conveyor.




VERTI-MIX EXPERT MODELS

Verti-Mix Special Mixer 1401

The 1401 Special is a 12m³ “no frills“ mixer, specified for the UK market. The mixer benefits from the same features as the rest of the Strautmann range.

The 1401 Special is available with the option of 2 different tub extension sizes, giving the opportunity to increase the capacity up to 14m3. Available with one or two doors, the 1401 Special can also be equipped with a direct hydraulic connection to tractor controlled discharge conveyor, enabling discharge over certain barriers.

  • Usable mixing capacity of 12m³
  • Front right-hand door
  • Enclosed hay ring
  • Single axle with hydraulic brake
  • Wide angle PTO, PTM HL50 programmable weighing
  • Direct hydraulic connection to the tractor

Technical Information

Model Usable Mixing Volume (with/without Extensions) Outside Wheel Width Technically Admissible Gross Vehicle Weight rating Weigh Cells
Verti-Mix 1401 Special 12.0m³ / 13.0m³ / 14.0m³ 2.18m 11,400kg 4

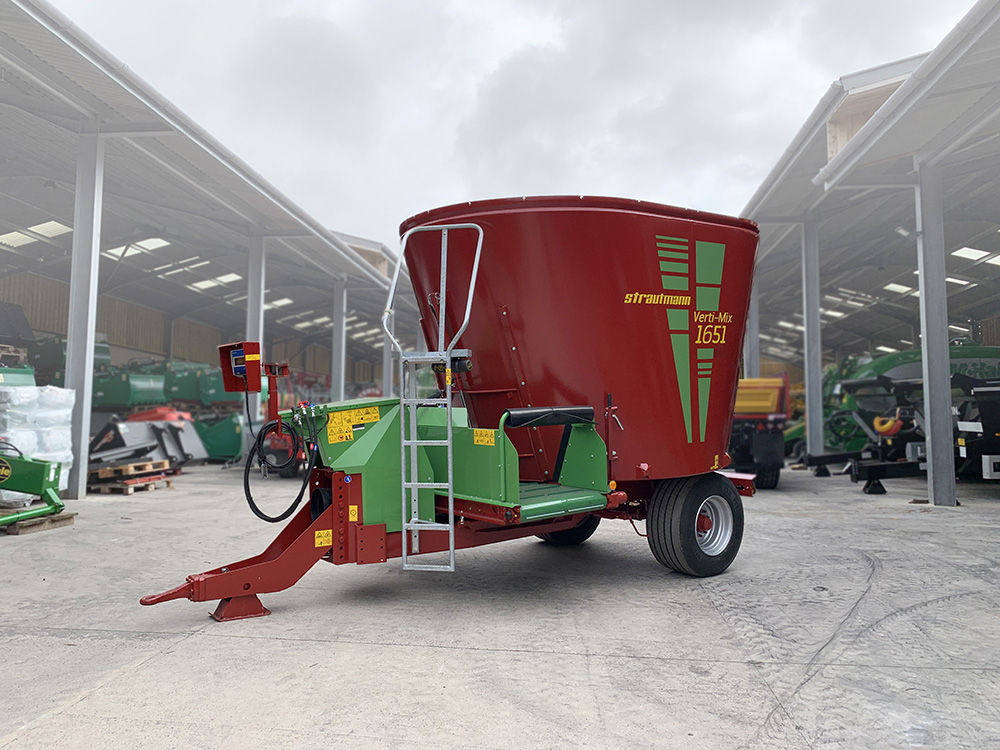

Verti-Mix Expert Single Mixer 951 / 1251 / 1401 / 1651

Single auger Verti-Mix Expert diet feeders are known for their gentle and quick mixing, equipped with a single vertical IMS mixing auger.

  • Usable mixing capacity of 7.5 - 16.5 m³
  • Expandable by 180 mm or 360 mm attachments
  • Highest stability of the container due to patented embossing
  • All components have been designed for maximum mixing capacity

Technical Information

Model Usable Mixing Volume (with/without Extensions) Width with Crossover Conveyor Outside Wheel Width Technically Admissible Gross Vehicle Weight rating 15km/h Weigh Cells
Verti-Mix 951 7.5m³ / 8.5m³ / 9.5m³ 2.16m 1.78m 7,000kg 3
Verti-Mix 1251 10.0m³ / 11.0m³ / 12.5m³ 2.28m 2.04m 12,000kg 3
Verti-Mix 1401 12.0m³ / 13.0m³ / 14.0m³ 2.42m 2.23m 12,200kg 4
Verti-Mix 1651 13.5m³ / 15.0m³ / 16.5m³ 2.42m 2.23m 12,200kg 4

Verti-Mix  Expert Double Mixer 1501 / 1801 / 2401 / 3101

The fodder mixing wagons of the Verti-Mix Expert Double series particularly excel by their high mixing capacity, while maintaining compact dimensions. Based upon the single auger vertical mixers, which are known for their gentle and quick mixing, the Verti-Mix Expert Double is equipped with 2 vertical IMS mixing augers. Apart from the quick preparation of larger fodder mixtures, the Verti-Mix Double models can particularly demonstrate their strengths in the powerful undoing of round and square bales.

  • Usable mixing capacity of 12.0 - 31 m³
  • Capacity expandable by 180 mm or 360 mm attachments
  • All components have been designed for maximum capacity
  • 50 - 180 cows per container filling
  • Power required from 50 - 135 HP (37 - 100 kW)

Technical Information

Model Usable Mixing Volume (with/without Extensions) Width with Crossover Conveyor Outside Wheel Width Technically Admissible Gross Vehicle Weight rating 15km/h (Single Axle) Technically Admissible Gross Vehicle Weight rating 15km/h (Tandem Axle) Weigh Cells
Verti-Mix 1501 12.0m³ / 13.5m³ / 15.0m³ 1.96m 2.03m 11,800kg - 4
Verti-Mix 1801 14.0m³ / 16.0m³ / 18.0m³ 2.16m 2.03m 12,600kg 11,800kg / 17,800kg 4
Verti-Mix 2401 19.0m³ / 21.5m³ / 24.0m³ 2.28m 2.25m 12,600kg 17,800kg / 25,800kg 6
Verti-Mix 3101 25.0m³ / 28.0m³ / 31.0m³ 2.42m 2.37m - 18,000kg / 26,000kg 6

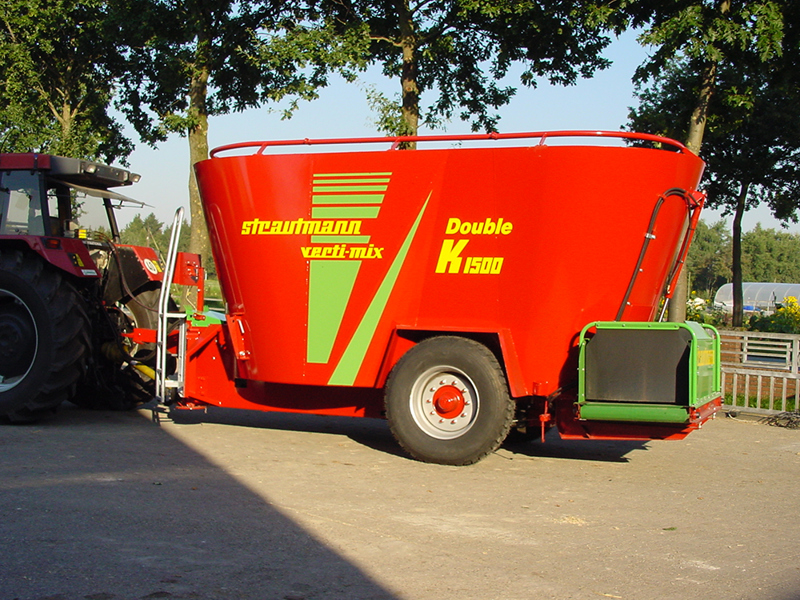

Verti-Mix Expert Double K Mixer 1300 / 1500 / 1800 / 2100

Preservation of the fodder structure, quick mixing, low wear, low maintenance costs, low power required and a slim design - these are the characteristics of today's classical 2-auger vertical mixers. Their disadvantage, however, is the fact that they cannot be equipped with large tyre sizes (22.5") without considerable influence on the machine height. This is exactly where Strautmann comes in, with the design of the Verti-Mix Expert Double K.

This is the first fodder mixing wagon which, due to its special container design, combines the advantages of the classical vertical mixing wagons with those of the horizontal mixing wagons (slim design, large tyres beside the mixing container) in one machine.

  • Usable mixing capacity of 13 - 21 m³
  • Unique container shape for low design
  • 50 - 150 cows per container filling
  • Power required from 55 - 74 HP (41 - 54 kW)

Technical Information

Model Usable Mixing Volume Width with Cross Conveyor Outside Wheel Width Technically Admissible Gross Vehicle Weight rating 15km/h Weigh Cells
Verti-Mix 1300 13.0m³  2.16m 2.17m 13,800kg 3
Verti-Mix 1500 15.0m³  2.16m 2.17m 13,800kg 3
Verti-Mix 1800 18.0m³  2.42m 2.45m 16,000kg 3
Verti-Mix 2100 21.0m³  2.42m 2.45m 16,000kg 3

Verti-Mix Expert Triple Mixer 3451 / 4501

The three-auger mixers with three vertical mixing augers are also equipped with the proven and patented extension concept with container embossing for maximum stability and flexibility. These adaptable large-scale fodder mixing wagons are perfectly suitable for large and still growing dairy farmers.

  • Usable mixing capacity of 28.5 m³ - 45.0 m³
  • Capacity expandable by 180 mm or 360 mm attachments
  • All components have been designed for maximum capacity
  • 140 - 320 cows per container filling

Technical Information

Model Usable Mixing Volume (with/without Extensions) Width with Crossover Conveyor Outside Wheel Width Technically Admissible Gross Vehicle Weight rating 15km/h (Tandem Axle) Technically Admissible Gross Vehicle Weight rating 15km/h (Tridem Axle) Weigh Cells
Verti-Mix 3451 28.5m³ / 31.5m³ / 34.5m³ 2.28m 2.17m 26,000kg - 8
Verti-Mix 4501 38.0m³ / 41.5m³ / 45.0m³ 2.42m 2.36m 38,000kg 38,000kg 8
VERTI-MIX EXPERT BROCHURE

Check out our latest full brochure by clicking the image below, download is available

TESTIMONIALS

“It does not matter how much you mix, it creates a consistent mix with every load. The ration was mixed more gently. It looked lighter, looser and more appealing. It is very easy to weigh-in the ingredients. Knowing the mixer wagon can deal with different lengths of forage means we are not committed to a precision chop forager for every cut”.

Alan Quick, Devon dairy farmer and owner of a Strautmann Verti-Mix – Expert 1651 (December 2021)

Read more about Mr Quick’s experience here.
